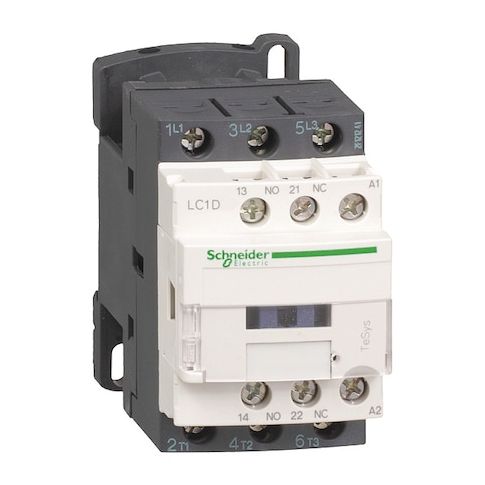

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09M7

• The IEC Magnetic Contactor is an electrically operated switching device that uses an electromagnetic coil to open or close its main contacts, rated for operation within the specified IEC standards. This 3-pole, non-reversing unit operates from a 220 V AC coil and includes auxiliary contacts (1NO/1NC) for signaling or control. It is part of Schneider Electric’s TeSys Deca family, features screw clamp terminals, and includes a protective cover

• does not include an enclosure.

  Key features

• - Coil voltage: 220 V AC
• - Phase/Poles: Three-phase, 3 poles
• - Main contacts: 3 normally open (NO)
• - Auxiliary contacts: 2 total (1 NO, 1 NC)
• - Reversing: Non-Reversing
• - Mounting/enclosure: DIN Rail or Plate mounting
• does not include an enclosure
• IP20
• - Electrical connection: Screw Clamp terminals
• - Rated voltage: 690 V AC / 300 V DC
• - Weight and dimensions: 0.32 kg
• 1.77 in wide x 3.03 in high x 3.39 in deep
• - Operating characteristics: 50/60 Hz
• Closing 12–22 ms, Opening 4–19 ms
• - Series: TeSys Deca
• - Protective features: Includes protective cover
• Embedded surge suppressor: No
