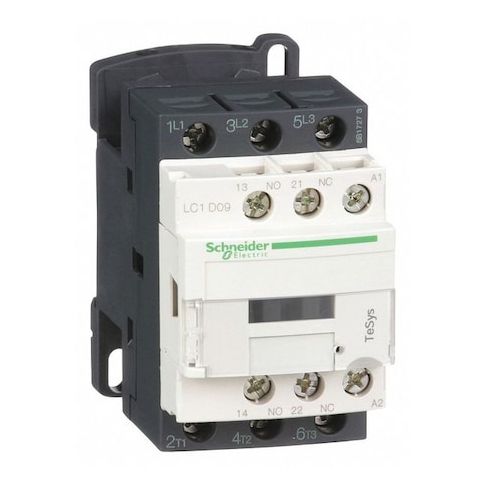

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09F7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Designed for use in control systems, this 3-pole, non-reversing contactor is compatible with 110V AC coils and features auxiliary contacts for added functionality. Suitable for use in industrial, commercial, and residential settings, this contactor is ideal for applications such as motor control, lighting, and HVAC systems. Its compact design and high-performance capabilities make it an excellent choice for a wide range of electrical control needs, ensuring safe and reliable operation in demanding environments.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, non-reversing, coil-driven switch design.
- It includes auxiliary contacts for added functionality.
- It features screw clamp terminals for easy electrical connection.
Top product applications:
- Industrial Automation
- Control Systems
- Electrical Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch rated for operation within specified control system parameters. Compatible with 110 V AC coils
- includes auxiliary contacts as specified. Designed for use within its rated load types and terminal configurations, with no enclosure included.
Key features
- - Coil Voltage: 110 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total
- 1NO/1NC configuration (Includes Auxiliary Contacts: Yes)
- - Reversing: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Series / Frame: TeSys Deca / TeSys
- - Frequency: 50/60 Hz
- - Rated for operation up to 690 V AC
- - Rated capacities under specified conditions
- - IP Rating / Enclosure: IP20
- No Enclosure
- - Net Weight: 0.32 kg
- - Dimensions (Overall): Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- - Hold VA: 7.5 VA (60 Hz, 20°C)
- 7 VA (50 Hz, 20°C)
- - Withstand impulse voltages up to this level when used within specifications
- - Insulation resistance exceeds this value when tested according to standards
- - Conforms to these recognized standards when installed correctly
- - Fire Rating: UL 94 V1
- - Environment Attributes: Mercury Free, Pollution Degree 3, PVC Free, Toxic Heavy Metal Free
- - Shock/Vibration: 15 G (Contactor Closed)
- 10 G (Contactor Open)
- - Standards/Certification: Includes Protective Cover: Yes
- - Phase: Three
- - Impedance: 2.5 mΩ
- - Maximum Operating Temperature: 140°F
- - Withstands impulse voltages up to this level when used within specifications
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.80
