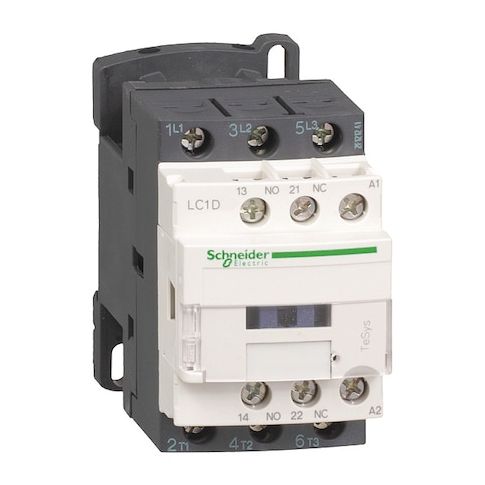

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09E7

• The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, mechanically interlinked device rated for switching power circuits within specified parameters. It features a 48 V AC coil and a 1NC/1NO auxiliary contact pair

• screw clamp terminals serve both power and control connections. The unit is mountable on a rail or plate and carries IP20 front-face protection with a protective cover included.

  Key features

• - Coil voltage: 48 V AC (control circuit, AC 50/60 Hz)
• - Poles and contact: 3P
• Non-Reversing
• 1NC/1NO auxiliary contacts (mechanically linked)
• - Terminals: Screw clamp (power and control circuits)
• - Mounting: Rail or plate
• - Physical: Net weight 0.32 kg
• Width 45 mm
• Height 77 mm
• Depth 86 mm
• - Protection and durability: IP20 front-face protection
• Protective cover included
• Mechanical durability 15 Mcycles
• - Electrical ratings: Fuse ratings 10 A signalling circuit
• 25 A Type 1 power circuit
• 20 A Type 2 power circuit
• Rated making capacities (250 A @ 440 V power circuit
• 140 A AC signalling
• 250 A DC signalling)
• Rated insulation voltage 690 V (power and signalling)
• Rated impulse withstand voltage 6 kV
• - Operating parameters: Maximum operating rate 3600 cyc/h
• Non-overlap time 1.5 ms
• - Environment and series: Permissible ambient -40 to 60°C (derating above 60°C to 70°C)
• Series LC1D
• - Additional electrical: Control circuit type AC 50/60 Hz
• Control circuit voltage 48 V AC 50/60 Hz
• Fuse and ratings aligned with IEC 60947 standards
