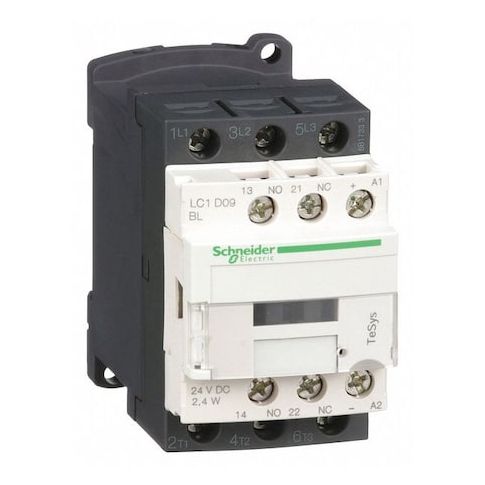

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling motor control and resistive load circuits. Suitable for indoor use in protected environments, this three-pole, non-reversing magnetic switch features a 24 V DC coil and screw clamp terminals. With a compact design and IP20 rating, it provides a safe and secure operation. The TeSys Deca series contactor is ideal for various applications, including industrial automation, HVAC, and lighting systems. Its high-quality construction and robust performance make it a great choice for industries seeking a reliable and efficient control solution.
Top product features:
- Control motor control and resistive load circuits with a 24 V DC coil.
- Has two auxiliary contacts (1NO/1NC) for additional control functions.
- Uses screw clamp terminals for easy electrical connections.
Top product applications:
- Motor control circuits
- Resistive load circuits
- General control applications
The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing magnetic switch (IEC style) with a 24 V DC coil. It is designed to control motor control and resistive load circuits and uses screw clamp terminals. The unit includes two auxiliary contacts (1NO/1NC) and is part of the TeSys Deca series. It is rated for operation within the specified voltage ranges, designed to operate within standard frequency ranges, and has an IP20 rating
- suitable for indoor use in protected environments. Mounting options include DIN Rail or Plate, with mounting on Plate or Rail.
Key features
- - Coil Voltage: 24 V DC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Reversing: Non-Reversing
- - Frame / Series: TeSys Deca
- Contactor Style: IEC
- - Electrical connections: Screw Clamp Terminals
- - Ratings: 690V AC / 300V DC
- Frequency 50/60 Hz
- - Currents (Full Load): Resistive 25 A
- Inductive 9 A
- - Protection / Enclosure: IP20
- No Enclosure
- Protective Cover Included
- Embedded surge suppressor (bi-directional diode)
- - Weight / Dimensions: 0.48 kg
- depth 3.74 in
- height 3.03 in
- width 1.77 in
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others listed
- - Other: Reversing capability No
- Series TeSys
- Series name included in description
- - Overvoltage category: CAT III
- - Fire rating: UL 94 V1
- - Working mounting: DIN Rail, Plate (Mounts on Plate, Rail)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 1.18
