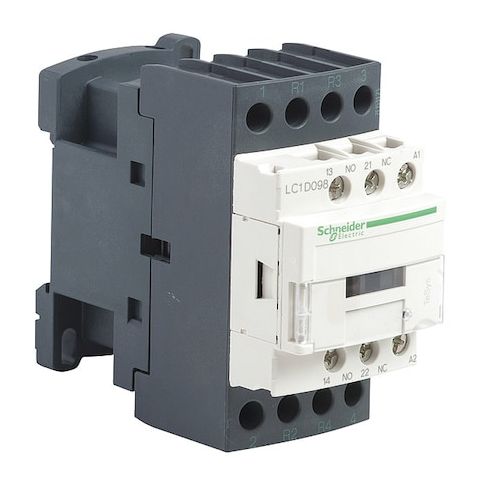

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw MPN:LC1D098G7

• The IEC Magnetic Contactor is a four-pole, non-reversing control device (IEC style) with a 120 V AC coil and a 1NC/1NO auxiliary contact configuration. Rated for resistive load switching within specified voltage ranges (up to 690 V AC and 250 V DC).

  - Poles: 4

• - Coil Voltage: 120 V AC
• - Auxiliary Contacts: 4 total (1NC/1NO form)
• - Main Contacts: 2 normally closed, 2 normally open
• - Reversing Capability: Non-Reversing
• - Phase: Three
• - Contactor Style: IEC
• - Application: Resistive Load
• - Maximum Voltage Rating: 690 V AC, 250 V DC
• - Rated Making Capacity: 250 A @ 440 V (Power Circuit)
• 140 A (AC Signalling Circuit)
• 250 A (DC Signalling Circuit)
• - Rated Insulation Volts: 600/690 V
• - IP Rating: IP20
• - Frequency: 50/60 Hz
• - Mechanical Durability: 15 Mcycles
• - Electrical Durability (Operating): 300,000 cycles
• - Embedded Surge Suppressor: No
• - Holding VA: 7.5 VA (60 Hz, 20°C)
• 7 VA (50 Hz, 20°C)
• - Inrush VA: 70 VA
• - Standards: UL
• EN 60947-4-1
• EN 60947-5-1
• - Standards (additional): UL 60335-2-40: Annex JJ
• - Mounting Style: DIN Rail, Plate
• - Mounts On: Plate, Rail
• - Height: 85 mm
• - Width: 45 mm
• - Depth: 92 mm
• - Net Weight: 0.365 kg
• - Terminal Connection: Screw Clamp Terminals
• - Tightening Torque: 1.7 Nm
• - Non-Overlap Time: 1.5 ms
• - Response Time: 12 to 22 ms (Closing), 4 to 19 ms (Opening)
• - Impulse Withstand Voltage: Meets industry standards for impulse withstand voltage
• does not guarantee performance under all conditions.
• - Holding Current/Voltage: Designed to operate within specified current and voltage ratings
• does not imply safety or suitability beyond rated parameters.
• - Switching Current: 5 mA (Signalling Circuit) / 17 V (Signalling Circuit)
