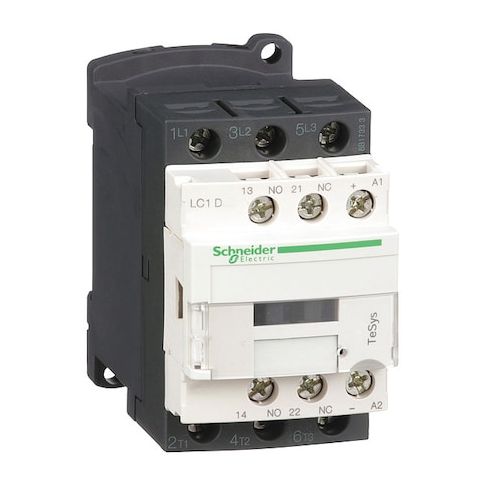

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D096BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load switching applications. Its 24V DC coil and built-in bidirectional peak limiting diode suppressor ensure safe and stable operation. With a 1NC/1NO auxiliary contact arrangement and 3 main normally open contacts, this contactor provides versatile control options. Suitable for use in a variety of settings, including industrial and commercial environments, it offers a durable and long-lasting solution for applications such as conveyor systems, HVAC control, and more. Its compact design and easy mounting options make it a convenient choice for many applications.
Top product features:
- It features a 1NC/1NO auxiliary contact arrangement, providing a way to control and monitor the circuit.
- It has a 3NO contact configuration, allowing for three main contacts to be controlled in a normally open configuration.
- It has an IP20-rated protective cover, providing a level of protection against solid objects and accidental touch.
Top product applications:
- Motor control
- Resistive-load switching
- Industrial automation
Schneider Electric IEC Magnetic Contactor, 3-pole, 24 V DC coil, non-reversing. It features a 1NC/1NO auxiliary contact arrangement and 3 main normally open contacts, with screw terminal connections. Suitable for use in motor control and resistive-load switching applications within specified parameters, it is compatible with mounting on rails or plates as specified and features an IP20-rated protective cover.
Key features
- - Coil and suppression: 24 V DC coil with built-in bidirectional peak limiting diode suppressor.
- - Auxiliary contacts: 2 total (1 NC + 1 NO), mechanically linked.
- - Main contacts: 3 NO contact configuration.
- - Electrical connections: Screw terminals
- control circuit uses lugs-ring terminals (8 mm) and power circuit uses lugs-ring terminals (8 mm).
- - Protection and durability: IP20-rated protective cover (included)
- impulse withstand 6 kV
- pollution degree 3
- overvoltage category CAT III.
- - Physical and mounting: Width 45 mm
- height 77 mm
- depth 95 mm
- weight 0.48 kg
- mounting on rail or plate
- mounts on plate and rail.
- - Ratings and standards: Series LC1D
- rated making capacity up to 250 A at 440 V (power circuit) with 140 A AC signalling and 250 A DC signalling
- insulation ratings include power circuit 690 V and signalling circuit 690 V
- certifications include BV
- GL
- UL
- GOST
- RINA
- CCC
- CSA
- DNV
- LROS
- UKCA.
- - Reversibility and load: Non-Reversing
- utilisation categories AC-1, AC-3, AC-3e, AC-4
- standard terminal connection: screw.
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.22
