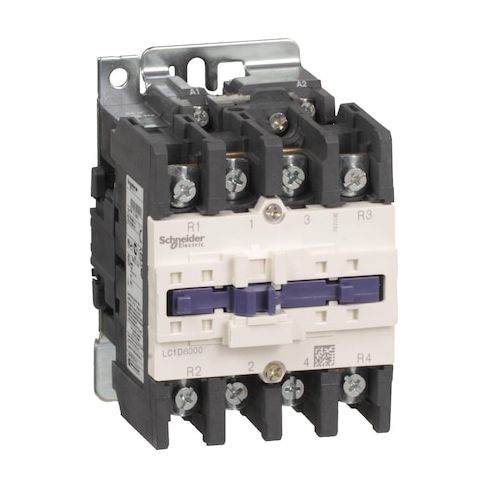

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D80008G7
Free Shipping
In Stock
The Schneider TeSys Deca LC1D IEC Magnetic Contactor is a reliable and efficient solution for motor, lighting, and industrial load control applications. Suitable for use in a variety of settings, including commercial and industrial facilities, this contactor features a 120V AC coil and four poles with a non-reversing operation. Its 1NC/1NO auxiliary contact provides additional functionality, while its screw clamp terminals ensure easy electrical connections. With its high-making/breaking capacity and insulation voltage ratings, this contactor is ideal for heavy-duty applications and provides a reliable and safe solution for power circuit switching.
Top product features:
- It switches power circuits using a 120 V AC coil.
- It has a 1NC/1NO auxiliary contact.
- It is rated for use with resistive loads within specified parameters.
Top product applications:
- Motor control in industrial automation
- Lighting control systems
- Resistive load control in industrial settings
The item is an IEC Magnetic Contactor (LC1D series, TeSys Deca) with four poles and a non-reversing operation. It uses a 120 V AC coil to switch power circuits and includes a 1NC/1NO auxiliary contact. This contactor is rated for use with resistive loads within specified parameters
- it complies with relevant IEC standards for motor, lighting, and industrial load control.
Key features
- - Coil voltage: 120 V AC
- - Poles and auxiliary contacts: 4P
- 2 NO + 2 NC
- Auxiliary contact form: 1NC/1NO
- - Electrical connections: Screw Clamp terminals
- - Power circuit ratings: Rated making/breaking capacity 1100 A @ 440 V
- Rated insulation voltage 600 V (UL/CSA) and 1000 V (IEC 60947-4-1)
- Rated operational current 125 A (≤60°C) at ≤440 V AC
- Utilisation category AC-1
- Rated voltage 690 V AC
- - Short-time and impulse withstand: 640 A (40°C, 10 s)
- 990 A (40°C, 1 s)
- 135 A (40°C, 10 min)
- 320 A (40°C, 1 min)
- Impulse withstand voltage 8 kV IEC 60947
- - Impedance and losses: Impedance 0.8 mΩ
- Inrush VA 245 VA
- Hold VA 26 VA
- Heat dissipation 6–10 W (50/60 Hz)
- - Mechanical and electrical durability: Mechanical durability 4 Mcycles
- Electrical durability 0.8 Mcycles
- - Physical dimensions and weight: Width 96 mm
- Height 127 mm
- Depth 140 mm
- Net weight 1.84 kg
- - Mounting and enclosure: Mounting support via Rail and Plate
- IP rating IP20
- Protective cover: Without
- - Environmental and safety attributes: Pollution Degree 3
- PVC Free
- Mercury Free
- Toxic Heavy Metal Free
- Fire ratings: UL 94 V1
- Fire resistance 1562°F (850°C) IEC 60695-2-1
- - Series and range: Series LC1D
- Range TeSys Deca
- - Reversing capability: Non-Reversing
- - Certifications: UL
- CSA
- CCC
- EAC
- UKCA
- CB
- EU-RO-MR by DNV-GL
- - Operational and control details: designed to operate within the specified control circuit voltage range
- specifications provided for proper application
- - Other: Associated fuse ratings 200 A gG (Type 1 Power Circuit) and 160 A gG (Type 2 Power Circuit)
- Impedance 0.8 mΩ
- Rated insulating voltage for power circuit 600 V (UL/CSA) / 1000 V (IEC)
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.92
