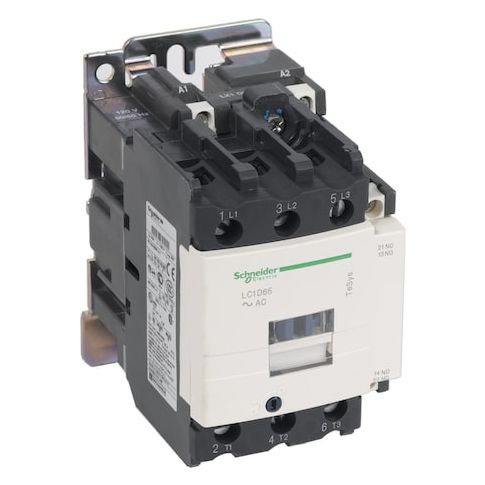

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, nonreversing, Screw Clamp MPN:LC1D65M7

• The Schneider Electric IEC Magnetic Contactor is an electrically operated switch used to control power circuits in IEC-standard control systems. It is a nonreversing, 3-pole device with a 1NC/1NO auxiliary contact configuration and a 220 V AC coil. The contactor is part of the TeSys Deca range (LC1D series), uses screw clamp terminals for control and power circuits, and is rated for operation within the specified voltage range (up to 690 V AC). A protective cover is included, and the coil does not have a built-in bidirectional peak limiting diode suppressor.

  Key features

• - Coil Voltage: 220 V AC
• - Poles: 3
• - Auxiliary Contact Form: 1NC/1NO
• - Mounting: Plate
• - Series/Range: TeSys Deca (LC1D)
• - Rated Voltage: rated for operation within the specified voltage range (up to 690 V AC)
• - Fuse Rating: 125 A (Power Circuit, coordination type 1/2)
• 10 A (Control Circuit)
• - Full Load Current: 65 A (Inductive)
• 80 A (Resistive)
• - Protective Cover: With
• - IP Rating: IP2X
• - Impulse Withstand Voltage: 8 kV
• - Power Dissipation per Pole: as specified in product documentation
• - Operating Time: Typical operating times based on testing conditions
• actual performance may vary
• - Mechanical Durability: Mechanical durability rating provided by manufacturer specifications
• - Maximum Horsepower Ratings (examples across voltages): Horsepower ratings are based on standard test conditions and should be used as reference only
• - Operating Rate: 3600 cyc/h at 60°C
• - Dimensions (approx.): Width 75 mm
• Height 127 mm
• Depth 119 mm
• - Weight: 1.4 kg
• - Series/Model: LC1D
• - Control Circuit Voltage: Control circuit voltage is specified for particular configurations and must be verified for compatibility
• - Utilisation Category: AC-1, AC-2, AC-4, AC-3e
