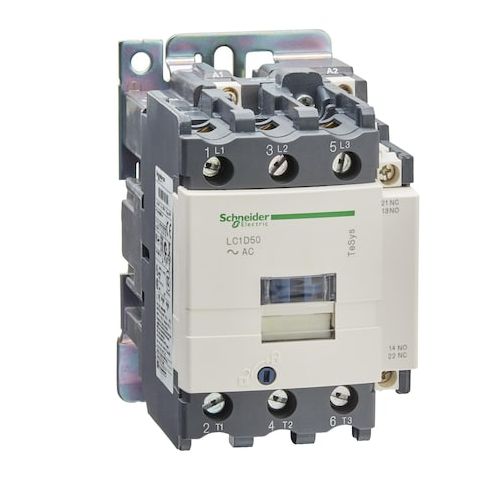

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, nonreversing, Screw Clamp MPN:LC1D50F7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor LC1D is a versatile and reliable solution for motor control and resistive-load applications. With a 3-pole, nonreversing design and built-in 110V AC coil, it provides efficient and safe operation in a wide range of environments. Its 1NC/1NO auxiliary contacts and screw-clamp terminals offer easy installation and connectivity. Suitable for use in power circuits up to 690V AC, this contactor is ideal for industrial automation, manufacturing, and infrastructure projects. Its robust design and durable construction ensure long-lasting performance and reliability, making it a valuable addition to any electrical system.
Top product features:
- Non-reversing operation allows for reliable and predictable control of motor and resistive-load applications.
- Built-in bidirectional peak-limiting diode suppressor protects against voltage spikes and surges.
- Screw-clamp terminals provide secure and easy connections for control and power circuits.
Top product applications:
- Motor control
- Resistive-load applications
- Power circuits up to 690 V AC
The Schneider Electric IEC Magnetic Contactor LC1D is a 3-pole, nonreversing, electrically operated switch rated for operation within specified parameters for motor control and resistive-load applications. It includes a built-in 110 V AC coil with a bidirectional peak-limiting diode suppressor rated for the specified application, 1NC/1NO auxiliary contacts, and screw-clamp terminals for control and power circuits. Rated for use in power circuits up to 690 V AC and includes a protective cover. Fuse guidance recommendations are provided based on standard practices.
- Poles and contacts: 3P with 3 NO main contacts
- Auxiliary contact form: 1NC/1NO
- Additional auxiliary contact types available (Mirror contact 1 NC
- Mechanically linked 1 NO + 1 NC).
- - Coil and suppression: Coil voltage 110 V AC
- Includes a built-in bidirectional peak-limiting diode suppressor rated for the specified application.
- - Control circuit: DC standard control circuit type
- Control circuit voltage 110 V DC.
- - Power and voltage ratings: Rated voltage 690 V AC (power circuit)
- Frequency 25 to 400 Hz
- Utilisation categories AC-1
- AC-3
- AC-3e
- AC-4.
- - Current and making/breaking capacity: Full Load Current – Resistive 80 A
- Full Load Current – Inductive 50 A
- Rated Making Capacity 140 A (AC control)
- 900 A @ 440 V (Power)
- 250 A (DC control)
- Rated Breaking Capacity 900 A @ 440 V.
- - Protection and enclosure: IP2X
- Includes protective cover
- Impulse withstand voltage 8 kV IEC 60947-1.
- - Mechanical and electrical performance: Operational speed range as specified by manufacturer
- Operating times 12–26 ms (Closing), 20 ms (Opening)
- Non-overlap time 1.5 ms
- Mechanical durability 10 Mcycles
- Shock and vibration: 15 G (closed), 10 G (open)
- Vibration 4 G (closed), 2 G (open).
- - Physical and mounting: Width 85 mm
- Depth 176 mm
- Height 127 mm
- Net weight 2.185 kg
- Mounting on Plate and Rail
- Connections: Screw Clamp terminals.
- - Additional specs: Max temperature 850°C
- Altitude 0–3000 m
- Environmental: Mercury Free, PVC Free, Toxic Heavy Metal Free
- Standards/ Certifications: IEC 60947-4-1
- IEC 60947-5-1
- EN 60947-5-1
- EN 60947-4-1
- CSA
- UKCA
- and other listed certifications
- Series LC1D.
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.11
