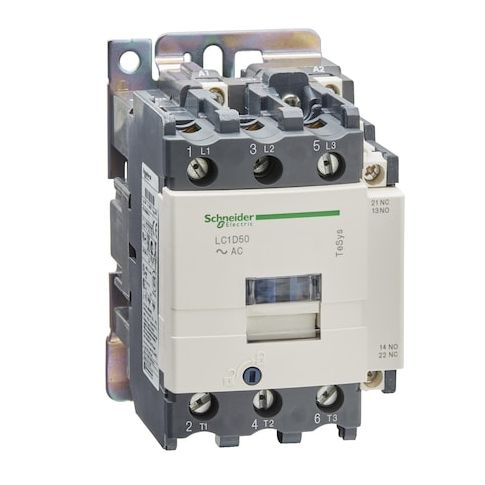

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:LC1D50B7
Free Shipping
In Stock
The Schneider Electric LC1D series IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various industrial applications. Its 3-pole, non-reversing design ensures safe and precise control, while its 24V AC coil and 1NC/1NO auxiliary contact provide flexibility and versatility. Suitable for use in control panels, machinery, and equipment, this contacter is ideal for switching resistive loads in power circuits up to 690V AC. Its compact design and screw clamp terminals make it easy to install and maintain, reducing downtime and increasing overall system efficiency. Perfect for applications in manufacturing, automation, and more.
Top product features:
- 3-pole, non-reversing operation allows for precise control of load circuits
- Mechanically linked 1 NO + 1 NC auxiliary contacts enable monitoring and control of the contactor's operation
- Screw clamp terminals provide a secure and reliable connection for electrical wiring
Top product applications:
- Motor Control Systems
- Industrial Automation
- Power Distribution Units
The device is an IEC Magnetic Contactor (Schneider Electric LC1D series). It is a 3-pole, non-reversing device with a 24 V AC coil and a 1NC/1NO auxiliary contact. It uses screw clamp terminals and includes a protective cover. Rated for switching resistive load power circuits within specified parameters. Rated for operation within specified voltage ranges: up to 690 V AC
- rated making capacity of 1000 A at 440 V (Power Circuit)
- and 140 A (Control Circuit). It can be mounted on a rail or plate and weighs 1.4 kg.
- Coil voltage: 24 V AC
- - Poles / main contacts: 3 NO
- Auxiliary: 1NC/1NO (2 auxiliary contacts total)
- - Auxiliary contact type: Mechanically linked 1 NO + 1 NC
- - Electrical connections: Screw clamp terminals
- - Mounting: Plate, Rail
- - Enclosure protection: IP2X
- Includes protective cover: Yes
- - Series: LC1D
- - Rated voltage: 690 V AC
- - Rated making capacity: 1000 A @ 440 V (Power Circuit)
- 140 A (Control Circuit)
- - Impulse withstand voltage: 6 kV
- - Mechanical durability: 6 Mcycles
- - Operating speed: 3600 cycles per hour
- - Non-overlap time: 1.5 ms
- - Dimensions: Depth 120 mm
- Height 122 mm
- Width 55 mm
- - Weight: 1.4 kg
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.10
