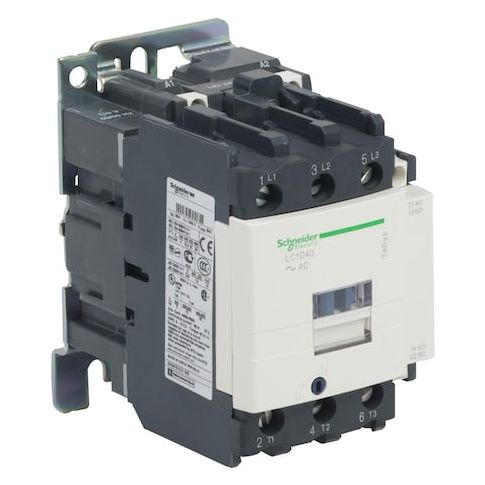

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for control circuit applications, suitable for use with motors and resistive loads. Its 3-pole design and 240V AC coil ensure precise control and minimize energy losses. The 1NC/1NO auxiliary contacts provide additional functionality, while the screw clamp terminals simplify wiring. With a compact design and robust construction, this contactor is ideal for use in industrial settings, including manufacturing, processing, and automation. Its high ratings and compliance with international standards make it a trusted choice for applications requiring reliable and efficient control.
Top product features:
- The SCHNEIDER ELECTRIC IEC Magnetic Contactor features a 3-pole, non-reversing electrical switch.
- It has 1NC/1NO auxiliary contacts for controlling external devices.
- The unit has screw clamp terminals for easy wiring and connection.
Top product applications:
- Motor control in industrial settings
- Control circuit applications in power plants
- Resistive load control in commercial buildings
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for use in control circuit applications within specified parameters. It features a 240 V AC coil and 1NC/1NO auxiliary contacts, with screw clamp terminals for wiring. The unit is rated for operation with motors and resistive loads within specified ratings, and is part of the LC1D series with mounting options on Plate or Rail.
Key features
- - Poles: 3
- Auxiliary contacts: 1NC/1NO
- Coil voltage: 240 V AC
- - Terminals: Screw Clamp
- Mounting: Plate, Rail
- Series: LC1D
- - IP rating: IP2X
- includes a protective cover (if applicable)
- - Rated voltage: 690 V AC
- Full load amps: 60 A resistive, 40 A inductive
- - Rated making/breaking capacity: 800 A @ 440 V (Power Circuit)
- 140 A (AC Control Circuit)
- 800 A @ 440 V (Breaking)
- - Fuses: 10 A (Control Circuit)
- 80 A (Type 1 & 2 Power Circuit)
- - Power ratings: provided according to standard testing conditions
- actual performance may vary based on application
- - Dimensions and weight: Width 75 mm
- Depth 119 mm
- Height 127 mm
- Net weight 1.4 kg
- - Operating characteristics: operating times are typical values under specified test conditions
- actual operation may vary
- - Shock/Vibration: shock and vibration specifications are based on standardized testing procedures
- do not imply safety or longevity guarantees
- - Standards: IEC 60947-5-1, IEC 60947-4-1, UL 508, EN 60947-4-1, EN 60947-5-1, CSA C22.2 No 14, and others
- - Working height: Up to 9842.52 ft
- Max temperature: 850°C
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.13
