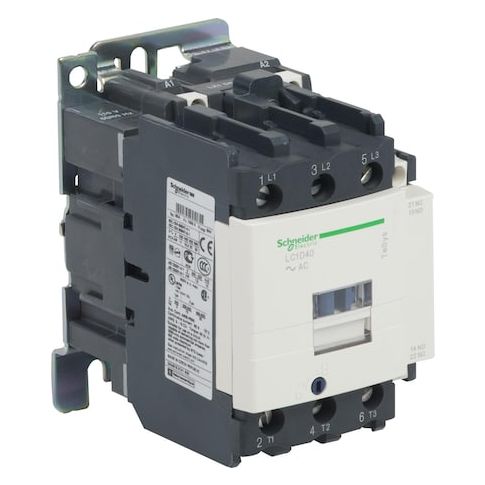

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40M7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. Its 3-pole, non-reversing configuration ensures safe and precise control, while the 1NC/1NO auxiliary contact provides additional functionality. With a 220V AC coil voltage and screw clamp terminals, this contactor is easy to install and integrate into existing systems. Ideal for use in industrial settings, such as manufacturing facilities and power plants, this device offers improved productivity and reduced downtime. Its compact design and IP2X rating make it a versatile and reliable solution for a range of applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole non-reversing switching capability.
- It features mechanically linked 1 NO + 1 NC auxiliary contacts.
- The unit has screw clamp terminals for electrical connection.
Top product applications:
- Industrial Automation
- Motor Control Systems
- Resistive Load Applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 1NC/1NO auxiliary contact and screw clamp terminals. Its coil is rated at 220 V AC, and it is rated for operation within specified load types (motor control, resistive loads). This unit is part of the TeSys Deca family (LC1D series) and includes a protective cover. Mounting options include Plate or Rail, and it is compatible with plate or rail mounting
- IP2X rating indicates the level of ingress protection as per specifications.
Key features
- - Poles: 3P
- - Auxiliary contacts: 1NC/1NO
- mechanically linked 1 NO + 1 NC
- - Coil voltage: 220 V AC
- - Reversing capability: Non-Reversing
- - Electrical connection: Screw Clamp Terminals
- - Mounting: Plate, Rail (Mounts On: Plate, Rail)
- - Protective cover: With
- - Series/Range: LC1D, TeSys Deca
- - Rated insulation voltage: 600/690 V
- - Rated making capacity: 800 A @ 440V (Power Circuit)
- 140 A (AC Control Circuit)
- - Rated operational current: 40 A AC-3
- 60 A AC-1
- 40 A AC-3e (≤ 440 V)
- - Net weight: 1.4 kg
- - Dimensions: Width 75 mm
- Height 127 mm
- Depth 119 mm
- - Impulse withstand voltage: 8 kV
- - IP rating: IP2X
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.50
