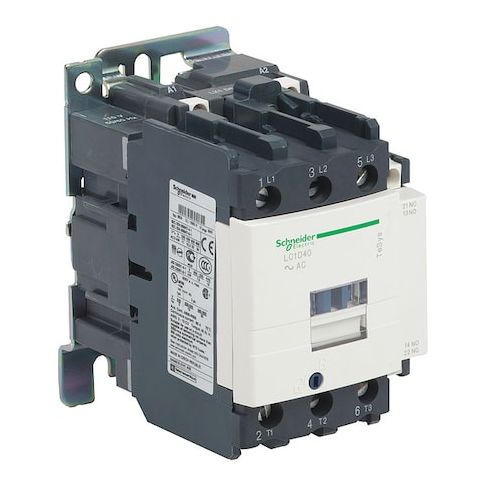

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40F7
Free Shipping
In Stock
The Schneider Electric LC1D series IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load switching applications. With a 3-pole, non-reversing design and 1NC/1NO auxiliary contact, it provides seamless control and monitoring capabilities. The device is driven by a 110V AC coil and features screw clamp terminals for easy wiring. Its compact design and robust construction make it suitable for a wide range of industries, including manufacturing, HVAC, and water treatment. By using this contactor, users can improve system reliability, reduce downtime, and increase overall efficiency.
Top product features:
- The product has a 1NC/1NO auxiliary contact, allowing for additional control and monitoring of the main circuit.
- It is a 3-pole device, enabling the control of three separate circuits or phases.
- The product is non-reversing, preventing accidental motor reversal and ensuring safe and reliable operation.
Top product applications:
- Motor Control
- Resistive Load
- AC Control Circuit
The item is an IEC Magnetic Contactor (Schneider Electric, LC1D series). It is a 3-pole, non-reversing device with 1NC/1NO auxiliary contact, driven by a 110 V AC coil and wired with screw clamp terminals. It is suitable for motor control and resistive load switching applications.
- Coil Voltage: 110 V AC
- - Poles: 3P
- - Auxiliary Contacts: 1NC/1NO (mechanically linked 1 NO + 1 NC)
- - Reversing: Non-Reversing
- - Terminals: Screw Clamp
- - Mounting: Plate
- Rail
- - Includes Protective Cover: Yes
- - Series: LC1D
- - IP Rating: IP2X
- - Rated Making Capacity: 800 A @ 440 V (Power Circuit)
- 140 A (AC Control Circuit)
- - Net Weight: 1.4 kg
- - Dimensions: Depth 119 mm
- Width 75 mm
- Height 127 mm
- - Coil Suppression: Without built-in bidirectional peak limiting diode suppressor
- - Applications: Motor Control
- Resistive Load
- - Environmental/Materials: Mercury Free
- PVC Free
- Toxic Heavy Metal Free
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.09
