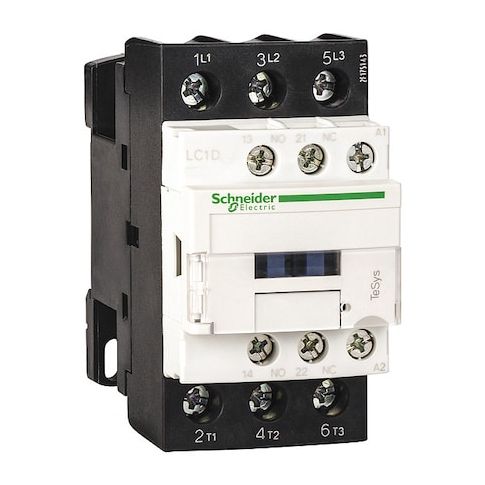

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32F7
Free Shipping
In Stock
The Schneider TeSys Deca IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. With a 3-pole, non-reversing design and 110V AC coil, this device provides precise control and versatility. The screw clamp terminations and DIN rail or plate mounting options make it easy to integrate into existing systems. The two auxiliary contacts offer additional functionality, while the compact design and IP20 rating ensure reliable operation in a variety of environments. Ideal for use in industrial settings, this contactor is suitable for applications such as motor starters, conveyor systems, and more.
Top product features:
- The product has a non-reversing design, allowing for one-way control of motor and resistive loads.
- It includes two auxiliary contacts (1 NC and 1 NO) for additional control and monitoring capabilities.
- The product features 3 normally open main contacts for reliable load switching.
Top product applications:
- Motor control
- Resistive load control
- Industrial automation
The item is an IEC Magnetic Contactor rated for operation with motor control and resistive loads within specified parameters. It is a 3-pole, non-reversing device with a 110 V AC coil and screw clamp terminations. The unit includes two auxiliary contacts (1 NC and 1 NO) and ships without an enclosure (IP20). It is part of the TeSys Deca series and can be mounted on a DIN rail or a plate.
Key features
- - Coil Voltage: 110 V AC
- - Poles/Phase: 3 poles, Three-phase
- - Reversing: Non-Reversing
- - Auxiliary Contacts: 2 total (1 NO / 1 NC)
- - Main Contacts: 3 normally open
- - Electrical Connection: Screw Clamp
- - Mounting: DIN Rail, Plate
- - Enclosure: No Enclosure
- IP20
- - Series/Frame: TeSys Deca
- - Frequency: 50/60 Hz
- - Max Voltage: 690 V AC
- - Full Load Current: Resistive 50 A
- Inductive 32 A
- - Net Weight: 0.375 kg
- - Dimensions: Height 3.35 in
- Width 1.77 in
- Depth 3.62 in
- - Mechanical Durability: 15 Mcycles
- - Electrical Durability: 1.4–1.65 Mcycles
- - Includes Protective Cover: Yes
- - Impulse Withstand Voltage: 6 kV
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.91
