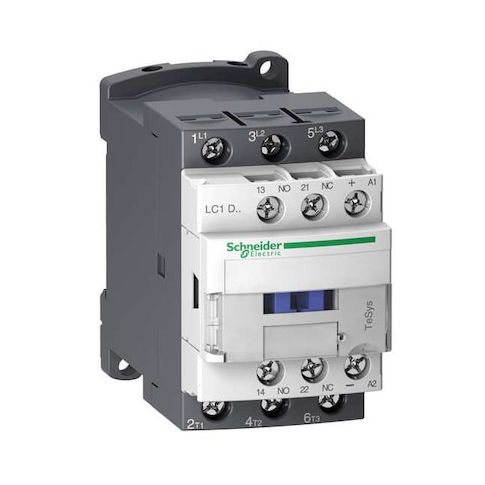

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32BL

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole switching device operated by a 24 V DC coil, rated for non-reversing operation within specified parameters. It includes 1 normally open auxiliary contact and 1 normally closed auxiliary contact (2 total) and uses screw clamp terminals. Part of the TeSys Deca family, it has an IP20 rated enclosure and includes a surge suppression component and a protective cover (if applicable). Suitable for use in motor control and resistive load applications (subject to proper installation), with mounting options on a DIN rail or plate.

  - Coil voltage: 24 V DC

• - Poles: 3
• - Auxiliary contacts: includes 1 normally open auxiliary contact and 1 normally closed auxiliary contact (2 total)
• - Main contacts: 3 normally open
• - Reversing: Rated for non-reversing operation within specified parameters
• - Electrical connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• Mounts On Plate, Rail
• - Series: TeSys Deca
• - Enclosure: IP20 rated enclosure
• - Protective cover: Yes (if applicable)
• - Surge suppression component: Yes
• - Dimensions (WxHxD): 1.77 in x 3.35 in x 3.98 in
• - Net weight: 0.535 kg
• - Rated voltage: 690V AC / 300V DC
• - Frequency: 50/60 Hz
• - Maximum operating temperature: as specified by the manufacturer
• - Environmental/standards: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
• Standards include EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed (and others)
