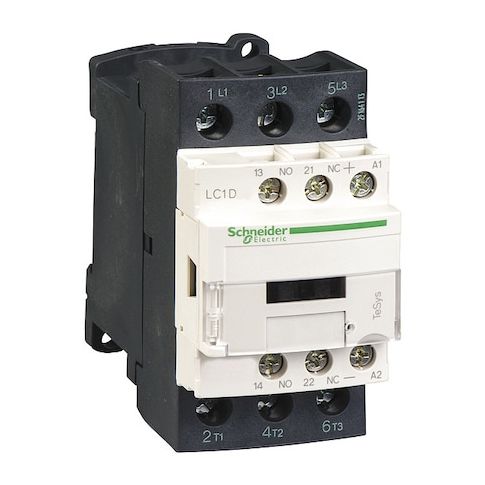

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, nonreversing, Box Lug MPN:LC1D326BD

• The Schneider Electric IEC Magnetic Contactor has a rated coil voltage of 24 V DC

• intended for switching power circuits in motor control and resistive load applications within specified operational parameters.

  - Coil voltage: 24 V DC

• - Poles: 3
• - Auxiliary contacts: 1NC/1NO
• Type: Mechanically linked 1 NO + 1 NC
• - Terminals: Box Lug
• - IP rating: IP20
• - Reversing capability: Nonreversing
• - Series: LC1D
• - Auxiliary contact form: 2 total (1NC/1NO)
• - Contactor application: Motor control
• Resistive load
• - Utilisation category: AC-3
• AC-4
• AC-1
• AC-3e
• - Mounting support: Rail
• Plate
• - Mounts on: Plate, Rail
• - Protective cover: With
• - Protection/Protective treatment: THIEC 60068-2-30
• - Rated insulation voltage (power circuit): Up to 690 V depending on circuit configuration
• - Maximum making capacity: Rated for maximum current ratings under specified conditions but not guaranteed for all scenarios
• - Mechanical durability: Designed for an estimated number of cycles under normal use but not indicative of lifespan guarantees
• - Depth, Height, Width: Physical dimensions provided without implying safety or performance guarantees
• - Net weight: Weight specification only, no liability implied regarding handling or durability
• - Coil protection: Includes suppression device suitable within specified electrical parameters
• - Rated insulation voltage (alternate): Up to 690 V depending on circuit type
• - Includes protective cover: Yes
