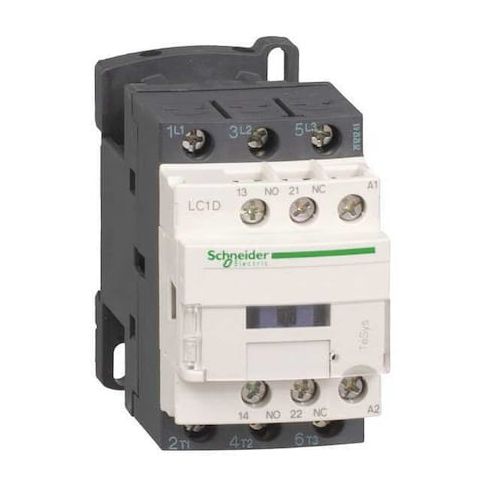

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25M7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device ideal for controlling power circuits in various applications. With its 3-pole, non-reversing design and 220V AC coil, it provides seamless control and safety in industrial settings. Suitable for use with resistive and inductive loads, it offers a robust solution for motor control, lighting, and HVAC systems. Its compact size and screw clamp terminals make it easy to integrate into existing systems, while its protective cover ensures a safe and secure installation. Perfect for use in commercial and industrial settings, this contactor is a reliable choice for a wide range of applications.
Top product features:
- 3-pole switching device
- Non-reversing operation
- Screw clamp terminals for wiring
Top product applications:
- Industrial control systems for manufacturing plants
- Motor control circuits for HVAC systems
- Power distribution panels for commercial buildings
The IEC Magnetic Contactor is a 3-pole, non-reversing switching device in the LC1D series. It uses a 220 V AC coil to control power circuits and features two auxiliary contacts (1NC/1NO, total of 2). Wiring is via screw clamp terminals, and it can be mounted on a plate or rail with an included protective cover. Rated for operation within the specified voltage ranges
- intended for use with compatible load types.
Key features
- - Series: LC1D
- Item: IEC Magnetic Contactor
- Poles: 3
- - Auxiliary Contacts: 1NC/1NO (2 total)
- Reversing Capability: Non-Reversing
- - Coil Voltage: 220 V AC
- Electrical Connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- Includes Protective Cover: Yes
- - Rated Voltage: 690 V AC, 300 V DC
- IP Rating: IP20
- - Full Load Current: 25 A (inductive), 40 A (resistive)
- - Dimensions: Width 45 mm, Height 85 mm, Depth 92 mm
- Net Weight: 0.37 kg
- - Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Fire Rating: Meets relevant flammability standards as indicated by UL 94 V1 classification
- - Horsepower (3-Phase): 7.5 hp @ 240V
- 15 hp @ 480V
- 20 hp @ 575V
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.95
