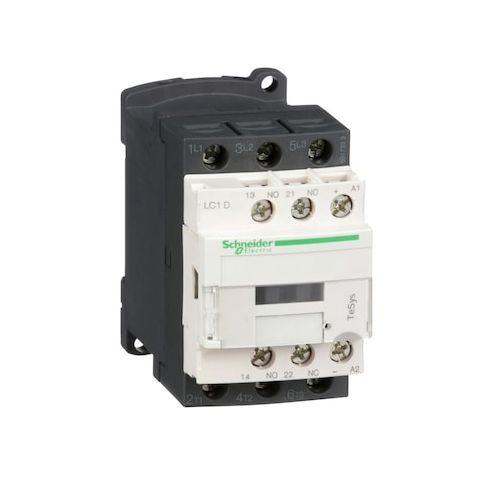

IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D18JD

• The item is an IEC Magnetic Contactor from Schneider Electric. It is a 3-pole, non-reversing device with a 12 V DC coil and an auxiliary contact form of 1NC/1NO, mounted with screw clamp terminals. It is rated for switching power circuits within specified parameters for motor control and resistive loads and is compatible with plate or rail mounting according to manufacturer specifications as part of the LC1D series.

  - Poles: 3

• Auxiliary Contacts: 1NC/1NO
• - Coil Voltage: 12 V DC
• - Electrical Connection: Screw Clamp Terminals
• - Mounting: Plate, Rail
• - Reversing Capability: non-reversing design as specified by the manufacturer
• - Depth x Width x Height: 95 mm x 45 mm x 77 mm
• - Net Weight: 0.49 kg
• - IP Rating: IP20
• - Includes Protective Cover: Yes
• - Series: LC1D
• - Rated Voltage: 690V AC, 300V DC
• - Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, plus others listed
• - Fire Rating: complies with UL 94 V1 flammability rating standards
• - Rated Making Capacity: values under specified test conditions
• actual performance may vary based on application conditions
• - Mechanical/Electrical Durability: 30 Mcycles (mechanical) and multiple specified electrical cycles depending on circuit type
• - Maximum Operating Temperatures: maximum operating temperature ratings provided by the manufacturer
