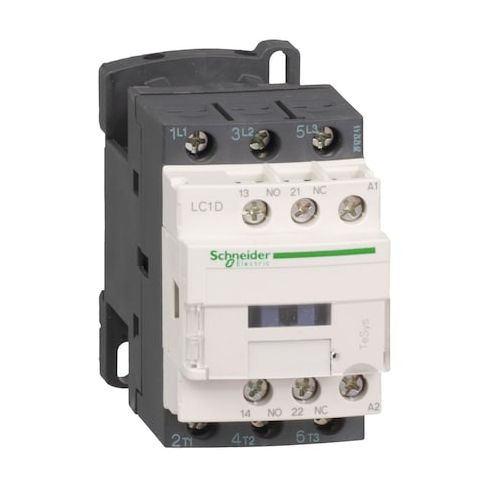

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, nonreversing, Screw MPN:LC1D186G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor LC1D is a reliable and efficient solution for motor control and resistive-load applications. Its 3-pole, nonreversing design ensures smooth operation and easy integration into existing systems. With a 120 V AC coil and 1NC/1NO auxiliary contact, this contactor provides flexible control and monitoring options. Suitable for use in a variety of industries, including manufacturing, HVAC, and water treatment, the LC1D contactor offers reliable performance and long lifespan. Its compact design and standard mounting methods make it easy to install and maintain, reducing downtime and increasing overall system efficiency.
Top product features:
- It has a 3-pole design for controlling multiple circuits.
- It features a nonreversing mechanism to prevent unintended direction changes.
- It includes a 1NC/1NO auxiliary contact for monitoring and controlling external devices.
Top product applications:
- Motor control
- Resistive-load applications
- Power circuit applications
The Schneider Electric IEC Magnetic Contactor LC1D is a 3-pole, nonreversing IEC magnetic contactor with a 120 V AC coil and a 1NC/1NO auxiliary contact. It is rated for operation within specified motor control and resistive-load application parameters. The unit includes a protective cover and has an IP20 front protection rating. It is listed in the LC1D series and is compatible with standard mounting methods.
- Coil Voltage: 120 V AC
- - Poles: 3
- - Auxiliary Contacts: 1NC/1NO (Mechanically linked 1 NO + 1 NC)
- - Reversing Capability: Nonreversing
- - Series: LC1D
- - Mounting: Rail
- Plate
- - Protective Cover: With
- - IP Rating: IP20
- - Utilisation Category: AC-1
- AC-3
- AC-4
- AC-3e
- - Rated Making Capacity: 140 A (AC Signalling)
- 250 A (DC Signalling)
- 300 A @ 440 V (Power Circuit)
- - Full Load Current (Resistive): 32 A
- - Fuse Rating: 10 A (Signalling)
- 50 A (Power Circuit Type 1)
- 35 A (Power Circuit Type 2)
- - Net Weight: 0.33 kg
- - Dimensions: Width 45 mm
- Height 77 mm
- Depth 86 mm
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.81
