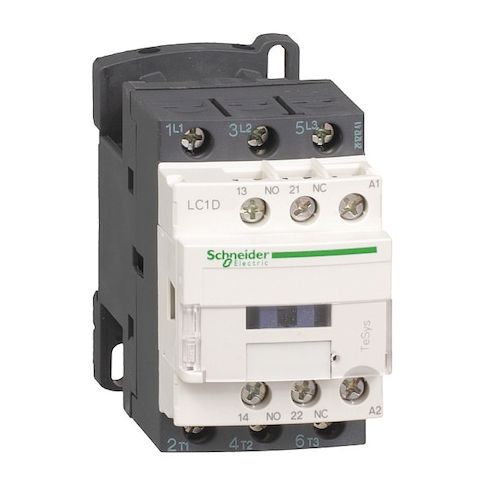

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12M7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 3-pole contactor intended for use in motor control and resistive load applications. It operates with a coil voltage of 220V AC and features mechanically linked auxiliary contacts (1 NO + 1 NC) in accordance with IEC standards. The contactor has an average impedance of 2.5 mOhm for the power circuit and is designed to meet the requirements of IACS E10 and IEC 60947-1 Annex Q category D specifications under standard conditions.

  Key Features:

• - Auxiliary Contact Form: This product includes a mechanically linked auxiliary contact form (1NC/1NO).
• - Coil Voltage: Operates at a coil voltage of 220V AC.
• - Connections - Terminals: The device offers multiple connection options via screw clamp terminals suitable for different cable stiffness types.
• - Electrical Durability: Electrical durability may reach up to 2 Mcycles under specified conditions.
• - Full Load Current - Resistive: Rated for a full load current of up to 25 A in resistive mode.
• - Max Operating Watts: Operating wattage range is between 3 kW to7.5 kW, dependent on the voltage level.
• - Rated Insulation Volts: Rated insulation volts are provided at levels of up-to600/690V
• operation should be maintained within these limits.
• - Utilisation Category: Intended for use in categories AC-4
• AC-1
• AC-3
• AC-3e as per international standards.
