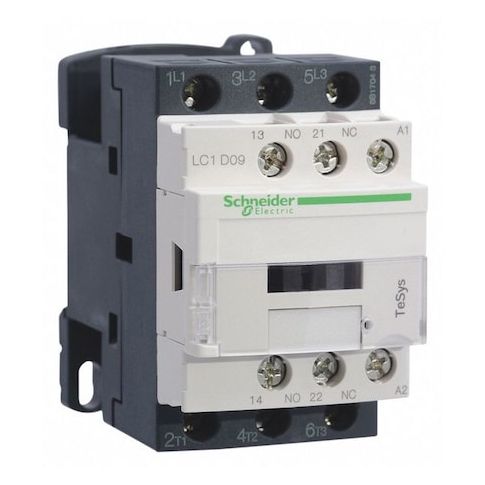

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12F7
Free Shipping
In Stock
The Schneider TeSys Deca IEC Magnetic Contactor is a versatile and reliable device for controlling power circuits in a variety of applications. Suitable for use with motor control and resistive loads, it provides a non-reversing solution for indoor use only. With 1 normally open and 1 normally closed auxiliary contacts, it offers flexibility and convenience. Its compact design and screw clamp terminals make it easy to integrate into existing systems. Ideal for use in industrial settings, the TeSys Deca IEC Magnetic Contactor is a reliable choice for applications that require precise control and efficient switching.
Top product features:
- Switches power circuits within the specified IEC standards.
- Has 1 normally open and 1 normally closed auxiliary contact.
- Is non-reversing to prevent accidental switching of power.
Top product applications:
- Motor control
- Resistive load switching
- General purpose power circuit switching
The item is an IEC Magnetic Contactor (TeSys Deca) with three poles and a 110 V AC coil. It is a non-reversing device with 1 normally open and 1 normally closed auxiliary contacts (2 total), and uses screw clamp terminals for wiring. Rated for switching power circuits within the specified IEC standards. It is suitable for use with motor control and resistive loads when used according to manufacturer instructions, and is provided without an enclosure
- rated IP20 for indoor use only.
Key features
- - Coil voltage: 110 V AC
- - Poles/Main contacts: 3 main normally open contacts
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Reversing: Non-Reversing
- - Electrical connection: Screw Clamp Terminals
- - Series/Frame: TeSys Deca (IEC)
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 690 V AC
- - Full Load Amps: 25 A (resistive)
- 12 A (inductive)
- - Enclosure: No Enclosure
- IP20 (indoor use only)
- - Weight: 0.325 kg
- - Dimensions: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- - Mounting: DIN Rail, Plate
- Mounts On: Plate, Rail
- - Protective cover: Includes protective cover
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, CSA, CSA C22.2 No 14, and others
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.80
- Package Height: 2.30
- Package Weight: 0.81
