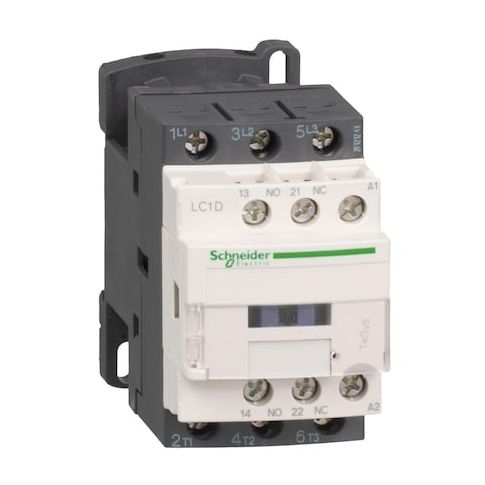

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12E7

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing device with 1NC/1NO auxiliary contacts and a 48 V AC coil. It uses screw clamp terminals and is rated for operation within specified load types. The unit is in the LC1D series and can be mounted on plate or rail in control panels.

  - Poles / Auxiliary contacts: 3 poles

• 1NC/1NO auxiliary contacts
• - Coil voltage: 48 V AC
• Electrical terminals: Screw Clamp
• - Rated voltage: 690 V AC / 300 V DC
• Reversing capability: Non-Reversing
• - Mounting: Plate, Rail
• IP rating: IP20
• Includes protective cover: Yes
• - Series: LC1D
• - Dimensions: Depth 86 mm
• Height 77 mm
• Width 45 mm
• - Net weight: 0.325 kg
• - Electrical ratings: Resistive full load 25 A
• Inductive full load 12 A
• Rated making capacity 250 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
• - Fusing: 10 A (Signalling Circuit)
• 40 A (Type 1 Power Circuit)
• 25 A (Type 2 Power Circuit)
• - Mechanical/electrical durability: Mechanical 15 Mcycles
• Impulse withstand: 6 kV
• - Operating times: 12–22 ms (Closing)
• 4–19 ms (Opening)
• - Non-overlap time: 1.5 ms
• - Other: Signalling frequency 25–400 Hz
• Shock resistance 15 G (Closed), 10 G (Open)
• Vibration 4 G (Closed), 2 G (Open)
• Hold VA 7.5 VA (60 Hz, 20°C)
• 7 VA (50 Hz, 20°C)
