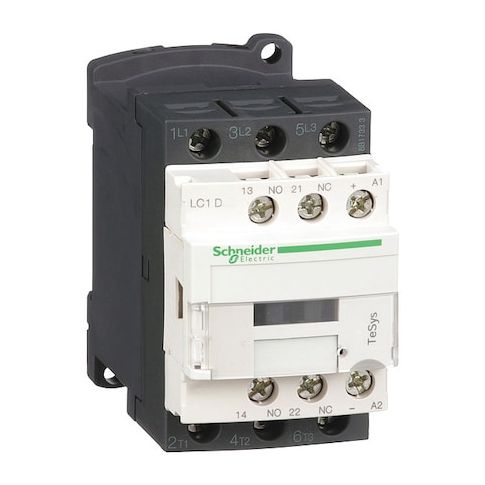

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12BL
Free Shipping
In Stock
The TeSys Deca IEC Magnetic Contactor from Schneider Electric is a reliable and efficient solution for motor control and resistive load applications. Suitable for use in a variety of settings, this 3-pole device features a 24V DC coil and 1NO/1NC auxiliary contacts for control circuit connections. Its screw clamp terminals ensure secure connections, and the IP20 enclosure rating provides protection against dust and water. With a maximum voltage of 690V AC and a rated making capacity of 250A, this contactor is ideal for applications in industries such as manufacturing, HVAC, and more, where efficient and safe motor control is essential.
Top product features:
- The product has 3 normally open main contacts.
- The product has screw clamp terminals for electrical connections.
- The product is designed for non-reversing operation.
Top product applications:
- Motor Control
- Resistive Load Applications
- Industrial Automation
The item is an IEC Magnetic Contactor from Schneider Electric (TeSys series). It is a 3-pole, non-reversing device with a 24 V DC coil. Equipped with 1 normally open and 1 normally closed auxiliary contact for control circuit connections. Features screw clamp terminals
- suitable for installation in appropriate enclosures according to applicable standards. Rated for use in motor control and resistive load applications within specified electrical parameters.
- Coil Voltage: 24 V DC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Reversing: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Frame / Series: TeSys Deca
- - Enclosure / Rating: IP20
- Does not include an enclosure
- installation should be performed in accordance with relevant safety standards
- - Maximum Voltage: 690 V AC, 300 V DC
- - Rated Making Capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Mechanical Durability: 30 Mcycles
- - Weight: 0.485 kg
- - Dimensions: Width 1.77 in, Height 3.03 in, Depth 3.74 in
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, Complies with applicable recognized safety standards as indicated by listing certifications
- - Fire Rating: Meets the UL 94 V1 flammability rating standard (note: does not imply fire resistance or safety guarantee)
- - Series: TeSys Deca
- - Frequency: 50/60 Hz
- - Phase: Three
- - Includes: Protective Cover, Auxiliary Contacts
- - Embedded Surge Suppressor: Includes a surge suppression component rated within specified limits
- proper application required to ensure performance
- - Environmental Attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- - Maximum Operating Temperature: 140°F
- - Max. Temperature: 850°C
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.70
- Package Height: 2.00
- Package Weight: 1.17
