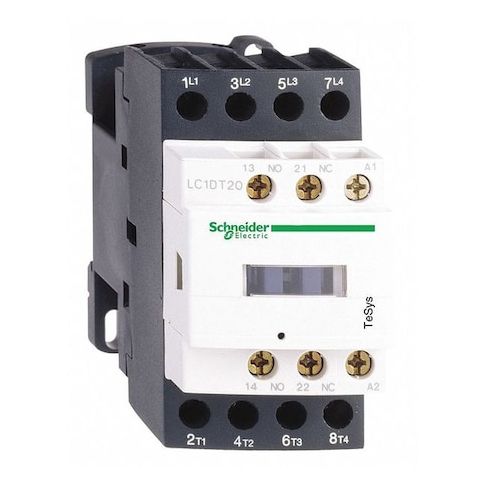

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw MPN:LC1D1286G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile and reliable device suitable for a wide range of applications, including industrial control systems, power distribution, and circuit protection. Its 4-pole, non-reversing design and 1NC/1NO auxiliary contacts enable efficient switching of resistive load power circuits, while its screw terminals and protective cover ensure safe and easy operation. With a high rated making capacity and insulation voltage, this contactor is ideal for use in circuits with high power requirements, offering improved reliability, efficiency, and safety in various industrial settings.
Top product features:
- Non-reversing operation ensures that the contactor closes and opens in a fixed direction, preventing accidental or unintended switching.
- Mechanically linked 1NC/1NO auxiliary contacts provide a convenient and reliable way to monitor the contactor's operation.
- Screw terminals for control and power connections simplify installation and reduce the risk of loose or corroded connections.
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Power Distribution Systems
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, non-reversing device with 1NC/1NO auxiliary contacts rated for switching resistive load power circuits within specified parameters. It is rated for operation with a 120 V AC control voltage and uses screw terminals for control and power connections. The unit is compatible with plate or rail mounting and includes a protective cover as standard feature. It is suitable for use in circuits with insulation voltages up to 690 V, within the device's specifications, with a resistive full-load current of 25 A and an inductive current of 12 A, and designed to handle current loads up to specified ratings under normal operating conditions.
- Coil voltage: 120 V AC
- - Poles and contacts: 4P
- Pole contact composition 2 NO + 2 NC
- Auxiliary contacts: 1NC/1NO (mechanically linked)
- - Connections: Screw terminals
- - Mounting: Plate
- Rail
- - Protective cover: Included as standard feature
- - IP rating: IP20
- - Utilisation categories: AC-1
- AC-3
- AC-3e
- AC-4
- - Rated making capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling)
- 250 A (DC Signalling)
- - Rated insulation: Power circuit 690 V
- Signalling circuit 690 V
- - Impedance: 2.5 mΩ
- - Impulse withstand voltage: 6 kV
- - Mechanical durability: 15 Mcycles
- - Operating times: Closing 12–22 ms
- Opening 4–19 ms
- - Ambient and mounting limits: Permissible ambient -40 to 60°C
- derating 60–70°C
- Operating altitude 0–3000 m
- - Dimensions and weight: Height 85 mm
- Width 45 mm
- Depth 92 mm
- Net weight 0.365 kg
- - Series: LC1D
- - Standards: EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 60947-4-1
- UL 60947-5-1
- CSA C22.2 No 60947-4-1
- CSA C22.2 No 60947-5-1
- GB/T 14048.4
- - Fuse ratings: 10 A (Signalling Circuit)
- 40 A (Type 1 Power Circuit)
- 25 A (Type 2 Power Circuit)
- - Additional characteristics: Reversing capability: non-reversing
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.86
