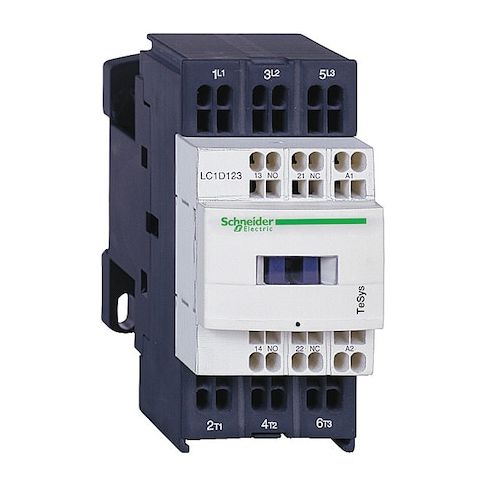

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Spring Type MPN:LC1D123G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in industrial and commercial settings. This 3-pole, non-reversing device features a 120V AC coil and spring-terminal connections, making it easy to integrate into existing systems. With a high making capacity and ability to handle resistive and inductive loads, it's perfect for applications such as motor control, lighting, and HVAC. Its compact design and IP20 rating ensure safe and reliable operation in harsh environments, making it an ideal choice for industries where electrical safety and efficiency are paramount.
Top product features:
- IEC Magnetic Contactor is a 3-pole device with two auxiliary contacts configured as 1NC/1NO, allowing for control and monitoring of electrical circuits.
- The product features a 120 V AC coil, enabling operation within a specific voltage range and providing flexibility in electrical circuit design.
- The device has a spring-terminal connection, facilitating easy and secure connections to electrical circuits and reducing the risk of electrical shock or malfunction.
Top product applications:
- Industrial control systems
- Motor control circuits
- Automated machinery and equipment
Schneider Electric’s IEC Magnetic Contactor is an electrically operated switch rated for operation within the specified IEC standards. It is a 3-pole, non-reversing device with a 120 V AC coil and spring-terminal connections, featuring two auxiliary contacts configured as 1NC/1NO (total of 2 auxiliary contacts) and belonging to the LC1D series.
- Poles and auxiliary contacts: 3 poles
- 2 auxiliary contacts (1 NC, 1 NO)
- - Coil Voltage: 120 V AC
- - Rated Voltage: 690 V AC / 300 V DC
- - Reversing capability: Not applicable / No reversing function
- - Electrical connection: Spring Terminals
- - Series: LC1D
- - IP Rating: IP20
- - Fire Rating: Meets UL 94 V1 flammability rating
- - Full Load Current: Rated for resistive load up to 16 A
- inductive load up to 12 A at specified conditions
- - Rated Making Capacity: Capable of handling currents up to specified ratings under test conditions, subject to proper installation and use
- - Dimensions: Width 45 mm
- Depth 86 mm
- Height 99 mm
- - Net Weight: 0.325 kg
- - Protective cover: Yes
- - Built-in suppressor module: Without Built-In Suppressor Module
- - Impulse withstand voltage: 6 kV
- - Operating speed: Rated for operation within the specified cycle frequency
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.83
