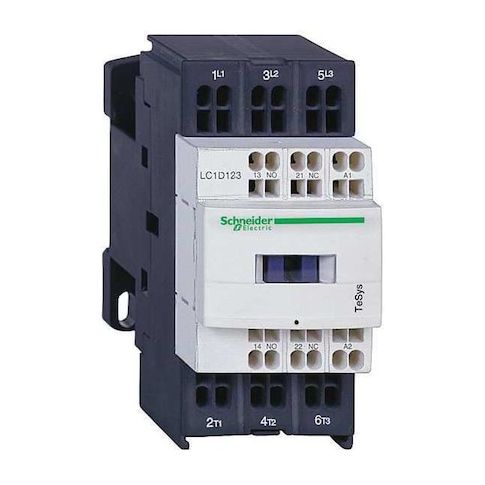

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Spring Type MPN:LC1D123BD

• The item is an IEC Magnetic Contactor (Schneider Electric, TeSys Deca) rated for switching power circuits within specified parameters. It is a 3-pole, non-reversing, spring-type device with a 24 V DC coil. The contactor includes 2 auxiliary contacts configured as 1NO/1NC. It is compatible with motor control and resistive load applications when operated within specified conditions and conforms to IEC standards for modular control panel compatibility (note: does not imply safety or performance guarantees).

  Key features

• - Coil Voltage: 24 V DC
• - Poles / Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 2 total (1NO/1NC)
• - Reversing: Non-Reversing
• - Contactor Style / Series: IEC
• TeSys Deca
• - Electrical Connection: Spring Terminals
• - Mounting: DIN Rail, Plate
• - Enclosure / Protection: IP20
• designed with a protective cover
• enclosure specifications are provided separately
• - Surge Suppression: includes surge suppression features as specified by the manufacturer
• - Dimensions / Weight: Depth 3.74 in
• Height 3.90 in
• Width 1.77 in
• Net weight 0.485 kg
• - Frequency: 50/60 Hz
• - Rated Voltage: rated for operation at up to 690V AC and 300V DC within the insulation ratings specified
• - Rated Making Capacity: rated making capacity under specified test conditions, actual performance may vary based on application conditions
• - Full Load Currents: rated for full load currents of up to these values under standard testing conditions
• - Durability: tested durability ratings based on manufacturer specifications
• actual lifespan depends on operating environment and usage patterns
• - Non-Overlapping Time: 1.5 ms
• - Working Height: Up to 9842.52 ft
