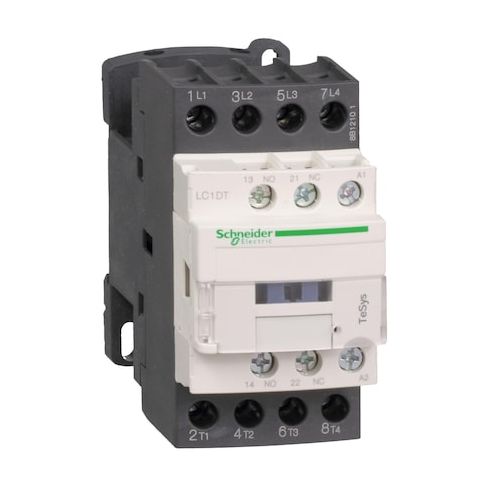

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT40U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switch for controlling resistive load circuits in IEC-driven control systems. Its four-pole, non-reversing design ensures precise control and safety in various applications, including industrial automation, HVAC, and power distribution. With a 240V AC coil and 1NC/1NO auxiliary contact configuration, this contactor can handle high currents and voltages, making it ideal for use in power circuits up to 440V and signalling circuits up to 690V. Its compact design and screw clamp terminals make it easy to integrate into existing systems, providing a reliable and efficient solution for a wide range of industrial applications.
Top product features:
- It contains a 240 V AC coil and an auxiliary contact configuration of 1NC/1NO.
- It is equipped with screw clamp terminals and a protective cover.
- It has a four-pole, non-reversing switch configuration.
Top product applications:
- Automotive Applications
- Industrial Automation and Control Systems
- Power Distribution and Control Panels
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a four-pole, non-reversing switch rated for controlling resistive load circuits within specified parameters in IEC-driven control systems. It contains a 240 V AC coil and an auxiliary contact configuration of 1NC/1NO
- equipped with screw clamp terminals and a protective cover.
- Coil voltage: 240 V AC
- - Control circuit: AC 50/60 Hz
- Control circuit voltage: 240 V AC 50/60 Hz
- - Auxiliary contact form: 1NC/1NO
- - Auxiliary contact type: Mechanically linked 1 NO + 1 NC
- Mirror contact 1 NC
- - Poles: 4P
- - Pole contact composition: 4 NO
- - Connections: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - Protective cover: Included
- - IP rating: IP20
- - Series: LC1D
- - Rated making capacity as specified: 140 A for AC signalling, 250 A for DC signalling, and up to 450 A at 440 V in power circuits
- - Rated operational current: rated operational current of up to 40 A in accordance with standard specifications at voltages up to ≤440 V
- - Power circuit voltage rating: Power circuit 600 V
- Signalling circuit voltage rating: Signalling circuit 690 V
- - Impulse withstand voltage: 6 kV
- - Net weight: 0.425 kg
- - Dimensions: Height 91 mm
- Width 45 mm
- Depth 99 mm
- - Certifications: GL
- CCC
- LROS
- BV
- UL
- RINA
- CSA
- GOST
- DNV
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.04
