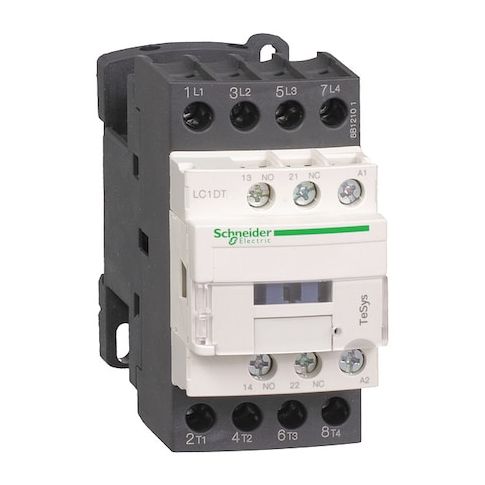

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT40F7

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 4-pole contactor with a coil voltage of 110V AC. It's suitable for use in resistive load applications and features mechanically linked auxiliary contacts (1 NO + 1 NC) in accordance with IEC standards. The contactor has an average impedance of 2 mOhm and has been tested under conditions of damp heat exposure as per IACS E10 and IEC 60947-1 Annex Q category D specifications. Its connections are made via screw clamp terminals that accommodate various cable sizes and stiffness types.

Key Features:

• Auxiliary Contact Form: The contactor comes with a 1NC/1NO auxiliary contact form. • Coil Voltage: Operates at a coil voltage of 110V AC. • Associated Fuse Rating: Has an associated fuse rating of up to 63 A gG at less than or equal to 690 V for power circuit coordination type. • Electrical Durability: Has demonstrated electrical durability of up to 1.4 Mcycles (40 A, AC-1, Less than or Equal to440 V) in testing. • Environmental Attributes: This product does not contain mercury, PVC or toxic heavy metals based on manufacturer's information, and has pollution degree level of three. • Fire Resistance: Tested for fire resistance at temperatures up to1562°F (850°C) according to the standard IEC60695-2-1. • Full Load Amps – Inductive & Resistive: Both stand at40A • Mechanical Durability: Has shown mechanical durability of up to15 Mccycles during tests.
