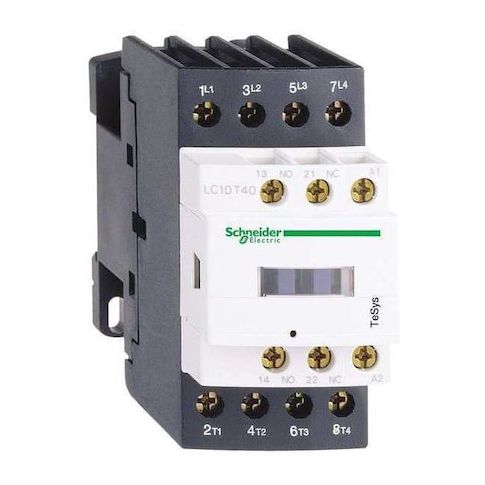

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT40BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for control panel configurations, offering a 4-pole, non-reversing design with screw clamp terminals. Suitable for resistive load applications, this magnetic switch operates at 24V DC and features 4 normally open main contacts, 2 auxiliary contacts, and a surge suppressor for added protection. Its compact design and IP20 rating make it ideal for use in a variety of industries, including manufacturing, HVAC, and automation. With a high making capacity and fast operating speed, this contactor is perfect for applications requiring precise control and reliable switching.
Top product features:
- The product has a non-reversing function, ensuring that the magnetic switch operates in a specific direction and preventing accidental reversals.
- The product features screw clamp terminals, allowing for secure and easy electrical connections.
- The product includes a surge suppressor, providing protection against electrical surges and spikes that could damage the switch or connected equipment.
Top product applications:
- Industrial Automation
- Control Panel Configurations
- Resistive Load Applications
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is an IEC-style, four-pole (4P) magnetic switch rated for operation within specified control panel configurations. It utilizes a 24 V DC coil as specified for switching operations and is described as non-reversing with screw clamp terminals. It is part of the TeSys Deca family and is rated for resistive load applications
- enclosure details are provided separately.
- Coil Voltage: 24 V DC
- - Poles / Main Contacts: 4 poles
- 4 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Reversing: Non-Reversing
- - Electrical Connection: Screw Clamp terminals
- - Series/Frame: TeSys Deca
- - Maximum Voltage Rating: 690 V AC - Rated for operation up to 690 V AC within the specified parameters
- - Rated Making Capacity: 140 A (AC Signalling), 250 A (DC Signalling), 450 A @ 440 V (Power Circuit) - rated for circuit capacities as specified under normal operating conditions
- - Full Load Amps: 40 A (Resistive), 40 A (Inductive) - rated for full load currents within the specifications listed
- - Enclosure/IP: No Enclosure
- IP20 - does not include an enclosure
- complies with IP20 ingress protection rating
- - Embedded Features: Yes, with surge suppressor
- - Protective Cover: Yes
- - Mounting Style: DIN Rail, Plate
- - Weight: 0.425 kg
- - Size (H x W x D): 3.58 in x 1.77 in x 4.22 in
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed
- - Fire Rating: UL 94 V1
- - Impulse Withstand Voltage: 6 kV
- - Pollution Degree: 3
- - Frequency: 50/60 Hz
- - Rated Insulation Voltage: 600/690 V
- - Mounts On: Plate, Rail
- - Operating Speed: 3600 cycles/hr
- - Non-Overlap Time: 1.5 ms
- - Series Name: TeSys Deca
- - Impedance/Other: Not Rated (not listed beyond basics)
