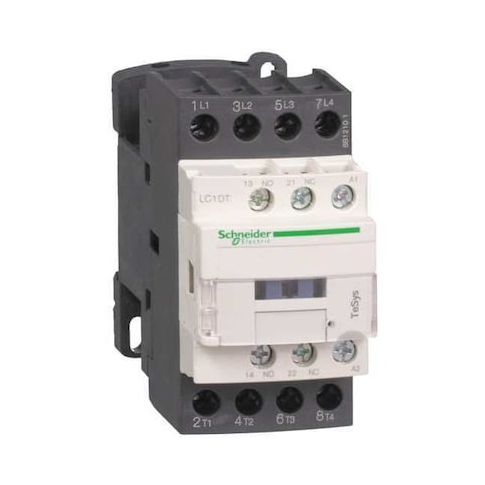

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT32G7

• - Coil voltage: 120 V AC

• - Application: rated for operation within specified load types
• - Poles: 4
• Main contacts: 4 normally open
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Reversing: Non-Reversing
• - Frame/Series: IEC
• TeSys Deca
• - Enclosure/IP: IP20
• No Enclosure
• - Connection: Screw Clamp Terminals
• - Mounting: DIN Rail, Plate
• - Standards: UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1, and others listed
• - Maximum voltage rating: rated for operation up to 690 V AC within specified conditions
• - Rated making capacity: rated for switching capacities as specified under test conditions
• - Full Load Amps: 32 A (resistive and inductive)
• - Electrical durability: tested for a specified number of operational cycles under defined conditions
• - Mechanical durability: tested for a specified number of mechanical operations under standard testing procedures
• - Inrush VA: rated power consumption during inrush and holding states within the specified temperature and frequency ranges
• - Impulse withstand: capable of withstanding impulse voltages up to the specified level when used according to installation guidelines
• - Shock resistance: tested shock resistance levels
• actual performance may vary based on application conditions
• - Signalling circuit frequency: designed to operate within the specified frequency range
• does not guarantee performance outside these parameters
• - Fuse amps: fuse ratings are provided as per specifications
• proper fuse selection should be based on actual application requirements
• - Height x Width x Depth: 3.58 in × 1.77 in × 3.9 in
• - Net weight: 0.425 kg
• - Maximum operating temperature: 140°F
• Max. Temperature: appears inconsistent with typical operating temperatures
• verify product specifications before use
• - Impedance: 2.5 mΩ
• - Resistance properties: Fire Resistant, Insulation Resistant
• - Protection contents: Includes Protective Cover: Yes
• Includes Auxiliary Contacts: Yes
• - Working frequency: 50/60 Hz
• - Environment attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
