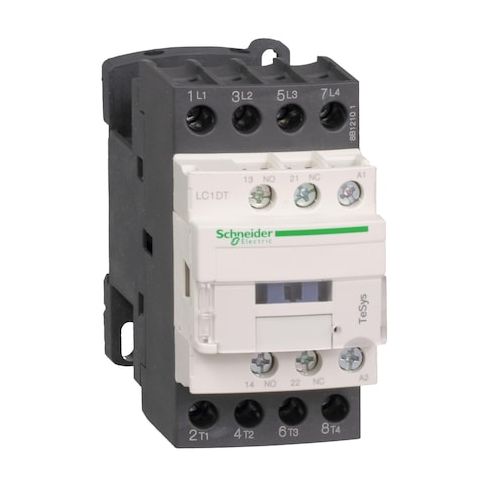

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT32B7

• The Schneider Electric IEC Magnetic Contactor is a non-reversing, 4-pole switching device (4P) with a 24 V AC coil and 1NC/1NO auxiliary contact (mechanically linked 1 NO + 1 NC). It uses screw clamp terminals for control and power circuits and is part of the TeSys Deca LC1D family, rated for switching power circuits within specified parameters.

  - Coil and control: 24 V AC coil

• control circuit 50/60 Hz
• - Main and auxiliary contacts: 4 NO main contacts
• 1NC/1NO auxiliary (mechanically linked 1 NO + 1 NC)
• - Electrical ratings: Ie 32 A (AC-1) at ≤440 V
• Rated making 140 A (AC signalling), 250 A (DC signalling), 300 A @ 440 V (Power Circuit)
• Rated voltage up to 690 V AC / 300 V DC
• - Terminals: Screw Clamp
• - Protection and enclosure: IP20 front face
• includes protective cover
• - Environment and materials: Mercury Free, PVC Free, Toxic Heavy Metal Free
• - Mechanical and electrical durability: 15 Mcycles mechanical durability
• shock 8 G (open) / 15 G (closed)
• vibration 4 G (closed) / 2 G (open)
• operating temperature -40 to 60°C (60-70°C derating)
• - Thermal and power characteristics: Heat dissipation 2–3 W
• hold VA 7.5 VA (60 Hz, 20°C)
• inrush VA 70 VA
• - Impulse and insulation: Impulse withstand 6 kV
• rated insulation voltages up to 600/690 V
• - Physical dimensions and weight: Height 91 mm
• Width 45 mm
• Depth 99 mm
• Net weight 0.425 kg
• - Mounting and installation: Mounting support Plate, Rail
• - Standards and certifications: EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• UL 508
• CSA C22.2 No 14
• plus listed certifications (as applicable)
• - Reversing and series: Non-Reversing
• Series LC1D
• Range TeSys Deca
• - Associated fuse ratings: 10 A gG ( signalling circuit )
• 50 A gG at ≤690 V (Type 1 Power Circuit)
• 35 A gG at ≤690 V (Type 2 Power Circuit)
