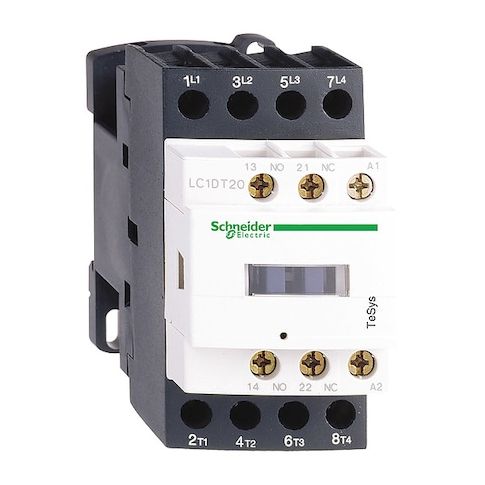

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT25G7
Free Shipping
In Stock
The Schneider TeSys Deca IEC Magnetic Contactor is a reliable and efficient solution for industrial control applications. Rated for 120V AC coil operation, this 4-pole, non-reversing contactor is suitable for a variety of load types, including inductive and resistive loads. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. With a durable construction and high-quality components, this contactor provides reliable switching performance and meets IP20 standards for protection. Ideal for use in industrial control panels, machines, and equipment, the TeSys Deca contactor offers a cost-effective and efficient solution for a range of applications.
Top product features:
- The product has 4 normally open main contacts for reliable circuit switching.
- It has a non-reversing design to prevent accidental motor reversal.
- The unit includes a protective cover for added safety and protection from environmental factors.
Top product applications:
- Motor control
- Industrial automation
- HVAC control systems
The IEC Magnetic Contactor, TeSys Deca, is a 4-pole, non-reversing, coil-driven switch rated for operation within specified load types. It is rated for use with a 120 V AC coil
- includes 4 main normally open contacts and 2 auxiliary contacts as specified. The unit uses screw clamp terminals, is designed to meet IP20 standards when properly installed, and includes a protective cover suitable for standard applications. Mounting options: compatible with DIN rail mounting or plate mounting per IEC standards.
Key features
- - Coil Voltage: 120 V AC
- - Poles/Main Contacts: 4 poles
- 4 normally open main contacts
- - Auxiliary Contacts: 2
- - Reversing: Non-Reversing
- - Series/Frame: TeSys
- TeSys Deca
- - Electrical rating: 690 V AC max
- 300 V DC
- - Full Load Amps: 25 A (inductive and resistive)
- - Enclosure/Protection: IP20 design
- protective cover included
- - Mounting: compatible with DIN rail mounting or plate mounting per IEC standards
- - Dimensions (W x H x D): 1.77 in x 3.35 in x 3.62 in
- - Net Weight: 0.365 kg
- - Durability: Mechanical 15 Mcycles
- Electrical 0.8 Mcycles
- - Operating times: Opening 4–19 ms
- Closing 12–22 ms
- - Impedance: 2.5 mΩ
- - Impulse Withstand Voltage: 6 kV
- - Environmental/Standards: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Standards include UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1
- - Other: Inrush VA 70 VA
- Hold VA 7.5 VA (60 Hz, 20°C) / 7 VA (50 Hz, 20°C)
- Signalling Frequency 25–400 Hz
- Operating frequency 50/60 Hz
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
