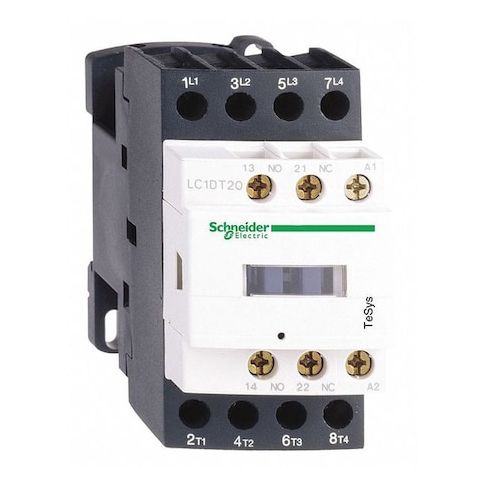

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT25F7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for control circuits with resistive-load applications. Its 110V AC coil voltage and 4-pole configuration make it suitable for a wide range of industrial and commercial uses, including lighting, heating, and ventilation systems. The non-reversing design ensures safe and consistent operation, while the screw clamp terminals provide easy and secure connections. With its compact dimensions and IP20 enclosure, this contactor is ideal for use in tight spaces and harsh environments, offering a reliable and long-lasting solution for control circuit applications.
Top product features:
- IEC Magnetic Contactor is a non-reversing device
- The product has screw clamp terminals for electrical connection
- The device has a protective cover and IP20 enclosure
Top product applications:
- Resistive Load
- Control circuits
- Resistive-load applications
Schneider Electric IEC Magnetic Contactor, 4-pole, non-reversing, electrically operated switching device for control circuits with resistive-load applications. Coil voltage: 110 V AC. Auxiliary contacts: 1NC/1NO. Series: LC1D. Electrical connection: Screw clamp terminals. Protective cover and IP20 enclosure.
Key features:
- - Application: Resistive Load
- - Coil Voltage: 110 V AC
- - Poles / Auxiliary Contacts: 4 poles
- 1NC/1NO
- - Reversing Capability: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Series: LC1D
- - Rated Voltage: rated for operation within specified voltage ranges
- - IP Rating: IP20
- - Includes Protective Cover: Yes
- - Dimensions (W x H x D): 45 mm x 85 mm x 92 mm
- - Net Weight: 0.365 kg
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
