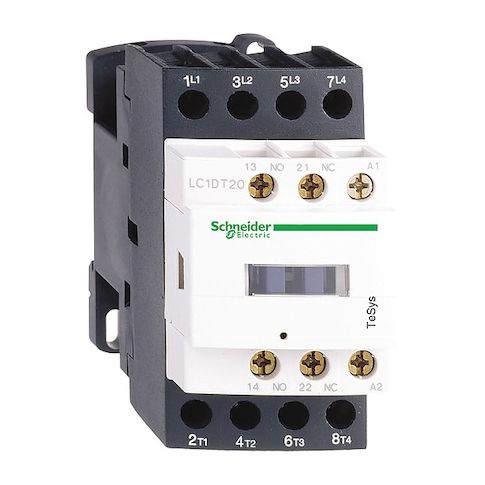

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT25B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for controlling electrical circuits. Suitable for use in a variety of applications, including industrial and commercial settings, this 4-pole non-reversing contactor provides a safe and stable connection for power circuits and signaling systems. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems. With a high rating for impulse withstand and insulation voltage, this contactor ensures reliable operation in harsh environments, making it an ideal choice for applications where safety and efficiency are paramount.
Top product features:
- The Schneider Electric IEC Magnetic Contactor features 4 NO main contacts for reliable circuit operation.
- The device has a 1NC/1NO auxiliary contact configuration for added functionality and flexibility.
- The contactor uses screw clamp terminals for easy and secure electrical connections.
Top product applications:
- Power Distribution Panels
- Motor Control Circuits
- Control Panels for Industrial Automation
The Schneider Electric IEC Magnetic Contactor is a 4-pole, non-reversing device with a 24 V AC coil. It features a 1NC/1NO auxiliary contact configuration (and a total of 4 auxiliary contacts), and uses screw clamp terminals for control and power circuits. Part of the TeSys Deca family, it includes a protective cover and is rated for operation within the specified IEC standards and compatible with standard mounting options.
Key features
- - Coil voltage: 24 V AC
- - Poles and contacts: 4P
- 4 NO main contacts
- auxiliary contacts 1NC/1NO (4 total)
- - Reversing capability: Non-Reversing
- - Electrical connections: Screw Clamp terminals
- - Mounting options: DIN Rail
- mounting support on Plate and Rail
- - Protection: includes a protective cover rated for IP20 protection level
- - Impulse withstand: rated for impulse voltage up to 6 kV according to applicable standards
- - Insulation voltage: Designed to operate within the specified insulation voltage ratings (600 V power circuit, 690 V signaling circuit)
- - Rated making capacity: up to 140 A (AC signalling)
- 250 A (DC signalling)
- 250 A @ 440 V (power circuit) under normal operating conditions
- - Major current ratings: suitable for resistive loads up to 200 A and inductive loads up to 25 A at the specified voltages
- - Coil power characteristics: designed with coil power consumption within these ranges during inrush and hold-in states (Inrush 70 VA
- Hold-in 7.5 VA @ 60 Hz / 7 VA @ 50 Hz)
- - Heat dissipation: 2–3 W
- - Durability: tested durability specifications based on industry standards but actual lifespan may vary depending on usage conditions
- - Mechanical shocks/vibration: 10 G (open)
- 15 G (closed)
- 4 G (closed)
- 2 G (open)
- - Operating speed and timing: 3600 cycles/hr
- opening 4–19 ms
- closing 12–22 ms
- - Physical dimensions: Height 85 mm
- Width 45 mm
- Depth 92 mm
- - Certifications: UL
- CSA
- CCC
- GL
- BV
- LROS
- GOST
- RINA
- DNV
- - Ambient and rating: Pollution degree 3
- operating temp -40 to 60°C (derating above 60°C)
- operating altitude 0–3000 m
- - Maximum voltages: 690 V AC
- 300 V DC
