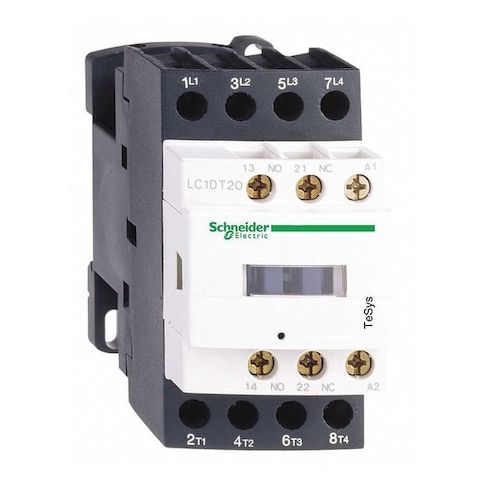

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT20BD

• - An IEC Magnetic Contactor rated for switching resistive load power circuits.

• - It is a 4-pole, non-reversing device with a 24 V DC coil and auxiliary contacts configured as 1NC/1NO (two auxiliary contacts total).
• - The unit features screw clamp terminals, suitable for mounting on plates or rails
• it includes a protective cover.
• - It conforms to the specifications of the LC1D series.
• - Coil voltage: 24 V DC
• - Poles: 4
• - Auxiliary contacts: 1NC/1NO (two contacts total)
• - Reversing capability: Non-Reversing
• - Electrical connection: Screw Clamp Terminals
• - Mounting: Plate, Rail
• - IP rating: IP20
• - Dimensions: Depth 99 mm
• Height 85 mm
• Width 45 mm
• - Net weight: 0.365 kg
• - Rated voltage: Up to 690 V AC / up to 300 V DC within specified conditions
• - Rated current (full load): Up to 20 A at specified conditions for resistive and inductive loads
• - Rated making capacity: As per applicable standards under specified test conditions
• - Impulse withstand voltage: Meets relevant testing standards under defined conditions
• - Fire rating: Fire rating classification based on standard testing methods
• does not imply safety guarantee in all environments
• - Rated insulation voltage: 600/690 V
• - Series: LC1D
• - Series designation indicates product line but does not imply performance guarantees beyond specifications provided
• - Includes protective cover intended for use according to installation instructions
• does not guarantee protection against all hazards
• - Environmental attributes: Mercury Free, PVC Free, Pollution Degree 3
• - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GOST, LROS, UL, CSA, RINA, BV, CCC, DNV, GL
• - Operating speed: 3600 cycles per hour
• - Operating time: Opening 16–24 ms
• Closing 53.55–72.45 ms
• - Non-overlap time: 1.5 ms
• - Overvoltage category: CAT III
• - Short-time withstand current: multiple values (up to 210 A for 1 s in Power Circuit, among others)
• - Switching current: 5 mA (Signalling Circuit)
• - Switching voltage: 17 V (Signalling Circuit)
• - Thermal amperage: 10 A (Signalling Circuit), 20 A (60°C Power Circuit)
• - Tightening torque: 1.7 Nm
• - Vibration resistance: 4 G (Closed), 2 G (Open)
• - Working height: Up to 9842.52 ft
