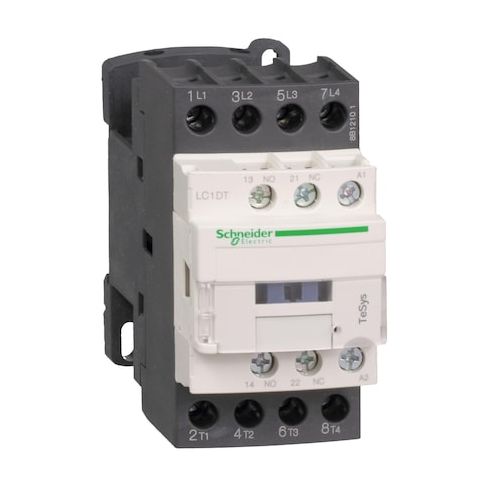

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT20B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for power-switching applications. Designed for use in a variety of settings, this four-pole, non-reversing device is ideal for industrial control systems, machine automation, and power distribution. With a 24V AC coil and screw clamp terminals, it provides easy installation and maintenance. The protective cover and IP20 front face ensure safe operation, while the compact dimensions make it suitable for space-constrained applications. Perfect for use in harsh environments, this contactor offers a high level of reliability and performance, making it an excellent choice for demanding industrial applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 4 main contacts (4 NO) for reliable power switching.
- It features 2 auxiliary contacts (1 NC + 1 NO) that are mechanically linked for simplified control circuit operation.
- The product has a protective cover for added safety and protection against environmental factors.
Top product applications:
- Power Distribution and Control Systems
- Industrial Automation and Control Systems
- Electrical Panel and Enclosure Applications
The Schneider Electric IEC Magnetic Contactor is a four-pole, non-reversing power-switching device rated for operation within specified voltage ranges with a 24 V AC coil. It features 1 NC and 1 NO auxiliary contacts (mechanically linked), and uses screw clamp terminals. Part of the LC1D TeSys Deca family, it complies with relevant standards for switching IEC-standard power circuits
- includes a protective cover
- mounting options include plate or rail installations.
Key features
- - Poles/contacts: 4 main contacts (4 NO)
- auxiliary contacts: 2 total (1 NC + 1 NO), mechanically linked
- - Coil and control: Coil voltage 24 V AC (50/60 Hz)
- control circuit AC (50/60 Hz)
- - Rated current and capacity: 20 A rated operational current (power circuit) at < 60°C
- 20 A full-load (resistive/inductive)
- - Making/interrupt ratings: 140 A (AC signalling) / 250 A (DC signalling)
- 250 A @ 440 V (Power Circuit)
- - Voltage and insulation: Rated voltage up to 690 V AC (power circuit) and up to 300 V DC
- insulation voltages: power circuit 600 V (CSA/UL), signalling circuit 690 V (IEC 60947-1)
- - Physical and mounting: Dimensions 45 mm W × 92 mm D × 85 mm H
- net weight 0.365 kg
- mounting on plate or rail
- screw clamp terminals
- - Protection and environment: IP20 front face
- protective cover included
- permissible ambient -40 to 60°C (60–70°C with derating)
- - Series and standards: Range TeSys Deca
- LC1D series
- standards include EN 60947-4-1, EN 60947-5-1, UL 508, IEC 60947-4-1, IEC 60947-5-1
- - Additional specs: impulse withstand voltage 6 kV
- maximum switching rate up to 3600 cyc/h at 60°C
- non-reversing operation
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
