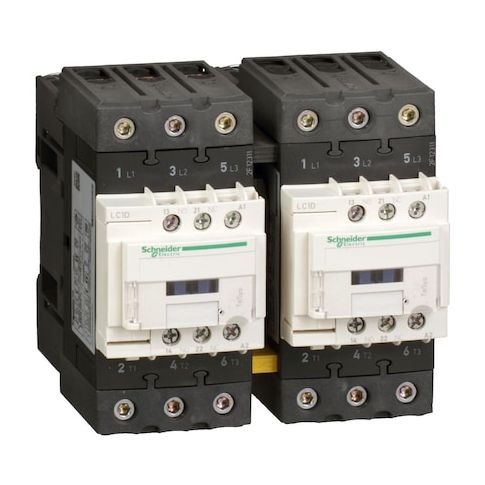

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D50AG7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for power circuit switching in a wide range of applications. Suitable for use in environments with high operating altitudes and varying temperatures, this 3-pole reversing device provides a high rated making capacity and operational currents, making it ideal for industrial and commercial settings. Its compact design and durable construction enable easy installation and long-term performance, while its certifications and compliance with international standards ensure safe and reliable operation. Ideal for use in power distribution systems, motor control, and industrial automation.
Top product features:
- Reversing action allows for easy direction control of the power circuit
- Mechanically linked 1 NO + 1 NC auxiliary contacts provide reliable control and indication
- EverLink BTR screw connectors enable easy and secure connection of power terminals
Top product applications:
- Industrial Automation
- Power Distribution Systems
- High-Voltage Switchgear
Schneider Electric’s IEC Magnetic Contactor is a 3-pole reversing device with 1NC/1NO auxiliary contacts and a 120 V AC coil. It is rated for switching power circuits within specified parameters and is equipped with control-circuit screw clamp terminals and power-circuit EverLink BTR screw connectors. The unit is preassembled with a reversing power busbar and includes a protective cover, suitable for installation in environments meeting relevant standards and conditions.
Key features
- - Poles: 3P
- Action: Reversing
- Auxiliary contacts: 1NC/1NO (type: mechanically linked 1 NO + 1 NC IEC 60947-5-1)
- - Coil voltage: 120 V AC
- Control terminals: Screw clamp
- Power terminals: EverLink BTR screw connectors
- - Device presentation: Preassembled with reversing power busbar
- Protective cover: Included
- - Ratings and electrical: Rated making capacity up to 900 A @ 440 V (Power Circuit)
- Rated operational currents: 50 A (AC-3 up to 440 V), 80 A (AC-1), 50 A (AC-3e)
- Impedance: 1.5 mΩ
- Impulse withstand: 6 kV
- - Insulation and protection: Rated insulation voltage Power circuit 690 V
- Signalling circuit 690 V
- IP20 front face
- - Certifications: UL
- CSA
- RINA
- GOST
- CCC
- DNV
- LROS
- GL
- BV
- UKCA
- - Dimensions and weight: Width 119 mm
- Depth 120 mm
- Height 122 mm
- Net weight 1.88 kg
- - Environment and durability: Operating altitude 0–3000 m
- Ambient operation -40 to 60°C (60–70°C with derating)
- Storage -60 to 80°C
- Pollution Degree 3
- Mechanical durability 6 Mcycles
- Shock/Vibration: 15 G (Closed) / 10 G (Open)
- 4 G (Closed) / 2 G (Open)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.60
