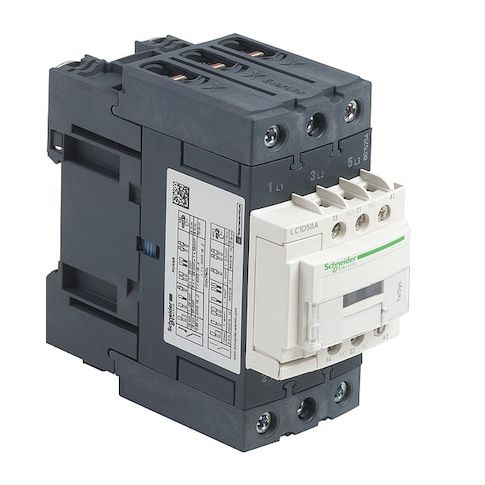

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AF7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications. Ideal for use in industrial control panels, machine automation, and power distribution systems, this contactor offers a non-reversing 3-pole design with a 110V AC coil and auxiliary contacts. Its screw clamp terminals and Everlink Power Connections ensure easy installation and reliable connections. With a high operational cycle frequency and mechanical durability, this contactor is perfect for demanding applications, while its compact dimensions and lightweight design make it easy to integrate into existing systems.
Top product features:
- The product has a 3-pole configuration with 3 normally open (NO) contacts.
- The product features 1 normally closed (NC) and 1 normally open (NO) auxiliary contacts, mechanically linked.
- The product is designed for non-reversing operation, providing a specific control function.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor (LC1D series) is an electrically operated switching device rated for operation within specified electrical parameters. It is a 3-pole, non-reversing contactor with a 110 V AC coil and auxiliary contacts configured as 1 NC and 1 NO, mechanically linked. It uses screw clamp terminals for control and power wiring, includes Everlink Power Connections, and includes a protective cover (note: does not imply safety guarantee).
Key features
- - Coil voltage: 110 V AC
- - Poles: 3
- Pole contact composition: 3 NO
- - Auxiliary contacts: 1 NC / 1 NO, mechanically linked
- - Reversing capability: Non-Reversing
- - Terminals: Screw Clamp
- - Series: LC1D
- - Includes: Everlink Power Connections
- - Protective cover: Includes a protective cover (note: does not imply safety guarantee)
- - IP rating: IP20
- - Overvoltage category: conforms to standard overvoltage category classifications
- - Ambient temperature: rated for operation within specified ambient temperature ranges
- derating may be necessary at higher temperatures
- - Pollution degree: 3
- - Dimensions and weight: Width 55 mm
- Height 122 mm
- Depth 120 mm
- Net weight 0.855 kg
- - Operating rate: rated for an operational cycle frequency of up to 3600 cycles per hour under normal conditions
- - Mechanical durability: designed for mechanical durability of up to approximately six million cycles under normal use conditions, actual lifespan may vary
- - Control circuit type: AC 50/60 Hz
- - Rated insulation voltage: rated for insulation within the specified voltage levels
- proper installation required
- - Rated making capacity: 140 A (AC Signalling)
- 250 A (DC Signalling)
- 900 A @ 440 V (Power Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.10
