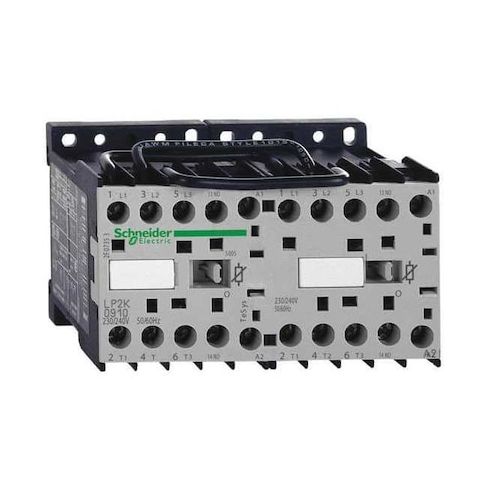

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K0610BD

• The item is Schneider Electric TeSys K IEC Magnetic Contactor, a reversing, three-pole, coil-driven switch rated for use in motor control applications. It has a rated coil voltage of 24 V DC and uses screw clamp terminals for wiring. The unit includes one instantaneous 1 NO auxiliary contact and main contacts described as 3 NO, and it is suitable for mounting on plate or rail. It is part of the LP2K series and carries multiple product certifications.

  Key features

• - Coil voltage: has a rated coil voltage of 24 V DC
• - Action: Reversing
• - Poles: 3P (three poles)
• - Main contacts: 3 NO
• - Auxiliary contact: 1 NO (Instantaneous)
• - Control circuit: DC standard
• - Mounting: Plate
• Rail
• - Electrical connection: Screw Clamp Terminals
• - Protection: IP20
• - Insulation voltage: 600/690 V
• - Rated making capacity: 110 A
• - Rated operational current: 6 A at AC-3 ≤ 440 V and AC-3e
• - Series: LP2K
• - Product name: TeSys K
• - Application: Motor Control
• - Protective treatment: TC IEC 60068
• TC DIN 50016
• - Certifications: CB Scheme
• CCC
• UL
• CSA
• CE
• UKCA
• EAC
• CE
• - Net weight: 0.48 kg
• - Dimensions (approx.): Width 90 mm
• Depth 57 mm
• Height 58 mm
• - Operating times: 30–40 ms (coil energisation and NO closing)
• 10 ms (coil de-energisation and NO opening)
