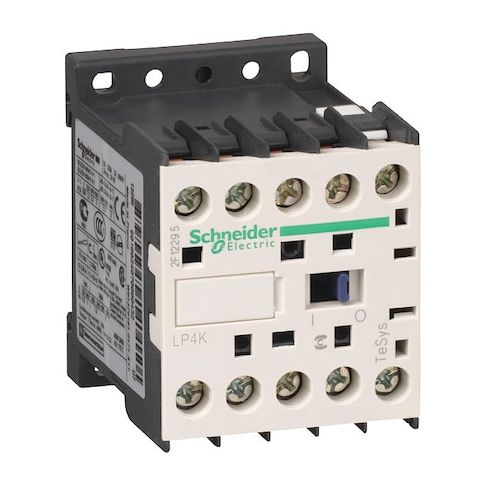

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP4K0910BW3
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for motor-control and resistive-load applications. With a 3-pole configuration and 24V DC coil, this contactor is ideal for use in a variety of settings, including industrial automation, power distribution, and control systems. Its non-reversing design and integrated surge suppression component ensure safe and reliable operation, while its screw clamp terminals provide easy connection and disconnection. Suitable for use in harsh environments, this contactor is a great choice for applications where reliability and efficiency are paramount, including in the manufacturing, oil and gas, and renewable energy sectors.
Top product features:
- The product has a 3-pole configuration.
- The product features a non-reversing design.
- The product contains an integrated surge suppression component.
Top product applications:
- Motor-control applications
- Resistive-load applications
- Industrial automation control systems
The Schneider Electric IEC Magnetic Contactor is an IEC-standard, electrically operated switching device with a 3-pole configuration and a 24 V DC coil. It features a non-reversing design with screw clamp terminals. This unit is rated for use in motor-control and resistive-load applications, contains an integrated surge suppression component, and is part of the TeSys K family. It has no auxiliary contacts and no enclosure.
Key features:
- - Coil voltage: 24 V DC
- - Poles: 3
- - Auxiliary contacts: No Auxiliary Contacts
- - Contactor style: IEC
- Reversing: Non-Reversing
- - Terminals: Screw Clamp
- - Mounting: DIN Rail, Plate
- - Series: TeSys K
- - Maximum/Rated voltage: 690 V AC
- - Frequency: 50/60 Hz
- - Full-load current: 20 A (resistive)
- 9 A (inductive)
- - Rated making capacity: 110 A
- - Impedance: 3 mΩ
- Impulse withstand: 8 kV
- - Fire rating: UL 94 V1
- NF F 16-101
- NF F 16-102
- - Enclosure: No Enclosure
- - Standards: CSA, UKCA, UL Listed
- Overvoltage CAT III
- - Dimensions: Height 2.28 in
- Width 1.77 in
- Depth 2.24 in
- - Net weight: 0.235 kg
- - Operating temperature: -13 to 122 Degrees F
- - Fuse amps: 25 A (Power Circuit), 10 A (Signalling Circuit)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.49
