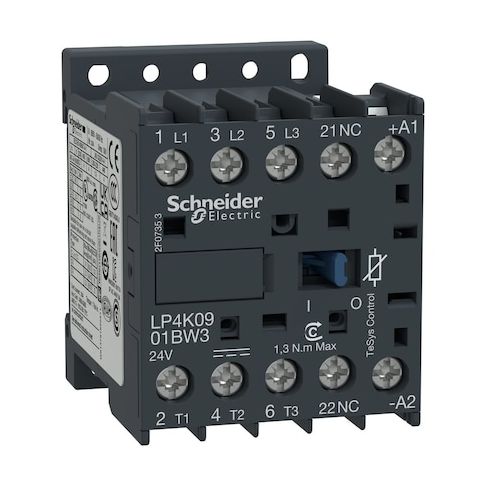

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Screw Clamp MPN:LP4K0901BW3

• The Schneider Electric IEC Magnetic Contactor is a 3-pole switching device with 1NC auxiliary contact and a 24 V DC coil. It is designed to control motor and resistive-load power circuits and uses screw clamp terminals. The unit is part of the LP4K series and is rated for operation within the specified voltage ranges. It has dimensions of 58 mm (height) by 45 mm (width) by 57 mm (depth) and a net weight of 0.235 kg, and it mounts on plate or rail.

  - Item: IEC Magnetic Contactor (3-Pole, 1NC) with 24 V DC coil

• - Auxiliary contact: 1NC
• - Terminal connection: Screw Clamp
• - Rated voltage: 690 V AC
• - Rated making capacity: 110 A
• - Rated breaking capacity: 110 A @ 415–440 V, 230–380/400 V
• 80 A @ 500 V
• 70 A @ 660–690 V
• - Full load amps (inductive): 9 A
• - Full load current (inductive): 9 A
• - Full load current (resistive): 20 A
• - Thermal amperage: 20 A (Power Circuit), 10 A (Signalling Circuit)
• - Impedance: 3 mΩ
• - Impulse withstand voltage: 8 kV
• - Insulation resistance: Greater than 10 MΩ (Signalling Circuit)
• - Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
• - Height x Width x Depth: 58 mm × 45 mm × 57 mm
• - Net weight: 0.235 kg
• - Mounting: Plate, Rail
• - Series: LP4K
• - Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
• - Operating time: 10–20 ms (Coil De-energisation and NO Opening), 30–40 ms (Coil Energisation and NO Closing)
• - Switching current: 5 mA (Signalling Circuit)
• - Switching voltage: 17 V (Signalling Circuit)
• - Overvoltage category: CAT III
• - Series/Model designation: LP4K
