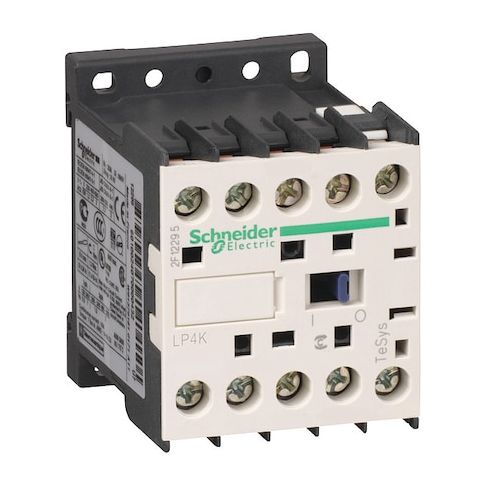

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP4K0601BW3

• Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with a 24 V DC coil and screw-clamp terminals. It is an IEC-style magnetic switch rated for use in motor-control circuit applications within specified parameters. The unit has no auxiliary contacts, includes a surge suppression component (if applicable), and mounts on DIN rail or plate as part of the Te Sys K family, with a 690V AC rating and 50/60 Hz operation.

  - Coil voltage: 24 V DC

• - Poles and main contacts: 3 poles
• 3 normally open main contacts (3 NO)
• - Reversing: Non-Reversing
• - Series/frame: TeSys K (TeSys)
• - Mounting and terminals: DIN Rail, Plate
• Screw Clamp
• - Voltage/frequency: 690V AC rated voltage
• 50/60 Hz
• - Embedded features: Yes, includes a surge suppression component (if applicable)
• - Enclosure: open device
• intended for installation within appropriate enclosures as per safety standards
• - Fire rating: complies with the listed fire safety standards (note: does not imply certification or guarantee of fire resistance)
• - Impulse withstand voltage: rated for impulse withstand voltage up to 8 kV under specified testing conditions
• - Insulation/ratings: rated for insulation at voltages up to 690V
• insulation resistance measured at >10 MΩ under test conditions
• - Electrical ratings: designed to operate within specified electrical load ratings under normal operating conditions
• - Dimensions and weight: Depth 2.24 in
• Height 2.28 in
• Width 1.77 in
• Net weight 0.235 kg
• - Other ratings: 50/60 Hz
• CAT III overvoltage category
• Operating temperatures: -13°F to 122°F
