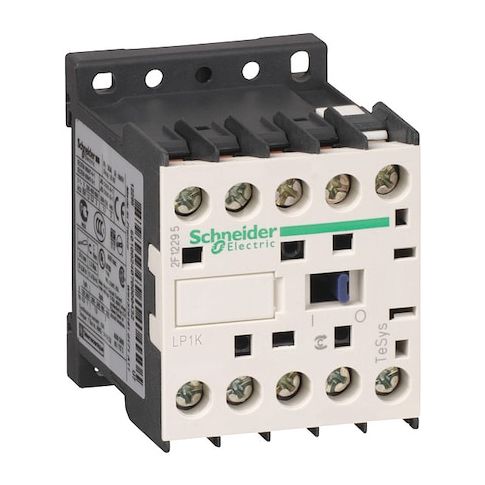

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Screw Clamp MPN:LP1K0901BD3

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is an IEC Magnetic Contactor with a 24 V DC coil and 3 poles. It includes 1 normally closed auxiliary contact (1NC) and uses screw clamp terminals. Rated for use in motor control and resistive load circuits within specified parameters. This device is suitable for switching power circuits within specified voltage and current ratings and can be mounted on a plate or rail.

  - Application: Motor Control, Resistive Load

• - Auxiliary Contact Form: 1NC
• - Coil Voltage: 24 V DC
• - Number of Poles: 3
• - Number of Auxiliary Contacts: 1
• - Terminal Connection Type: Screw Clamp
• - Rated Voltage: 690 V AC
• - Full Load Current (Resistive): 20 A
• - Full Load Current (Inductive): 9 A
• - Impedance: approximately 3 mΩ under test conditions
• - Impulse Withstand Voltage: up to 8 kV according to testing standards
• - Insulation Resistance Range: greater than or equal to 10 MΩ under test conditions
• - Fire Rating: conforms to fire safety standards UL 94 V1, NF F 16-101, NF F 16-102 (compliance does not imply safety or suitability)
• - Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
• - Series: LP1K
• - Mounts On: Plate, Rail
• - Net Weight: 0.225 kg
• - Height: 58 mm
• - Width: 45 mm
• - Depth: 57 mm
• - Operating Time: typical operating times based on coil energization/de-energization cycles
• actual performance may vary depending on application conditions
• - Overvoltage Category: CAT III
• - Rated Making Capacity: up to approximately 110 A under specified test conditions
• - Rated Insulation Volts: 600/690 V
• - Switching Current: 5 mA (Signalling Circuit)
• - Switching Voltage: 17 V (Signalling Circuit)
• - Fuse Amps: 25 A (Power Circuit), 10 A (Signalling Circuit)
• - Working Height: 6561.68 ft
