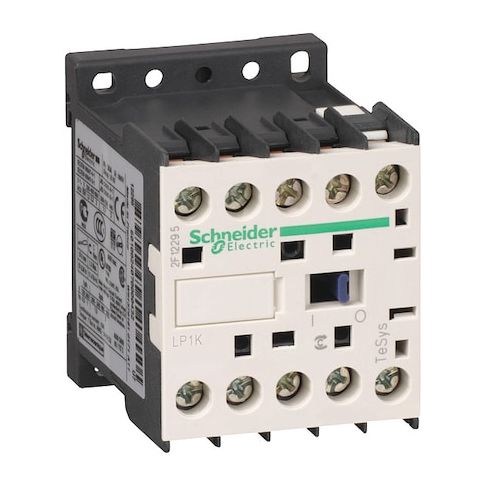

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP1K0901BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling motor and resistive loads in various applications. With its 3-pole, non-reversing design and 24V DC coil, it provides a high level of control and flexibility. This contactor is ideal for use in industrial automation, building management systems, and other control applications. Its compact design and screw-clamp terminals make it easy to install and integrate into existing systems. By using this contactor, users can improve efficiency, reduce downtime, and increase overall system reliability, making it a valuable addition to any control panel or automation system.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 normally open main contacts.
- It is designed for non-reversing operation, allowing for one-way control of motor and resistive loads.
- It has screw-clamp terminals for secure and easy connections.
Top product applications:
- Motor control in industrial automation
- Resistive load switching in control applications
- Non-reversing control in motor and resistive load applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil and screw-clamp terminals. It has no auxiliary contacts and is part of the TeSys K series, rated for operation within specified control applications involving motor and resistive loads.
- Coil voltage: 24 V DC
- - Poles: 3
- Main contacts: 3 normally open
- - Auxiliary contacts: None
- - Reversing: Non-Reversing
- - Frame/Series: TeSys K (IEC)
- - Mounting/Termination: DIN Rail, Plate
- Screw Clamp
- - Maximum voltage: 690 V AC
- - Full-load amps: rated for continuous operation at currents up to 20 A (resistive) and 9 A (inductive) under specified conditions
- - Frequency: 50/60 Hz
- - Impulse withstand: tested to withstand impulse voltages up to 8 kV as per applicable standards
- - Dimensions: Height 2.28 in, Width 1.77 in, Depth 2.24 in
- - Enclosure: open device without enclosure
- suitable for installation in appropriate enclosures or environments as specified
- - Weight: 0.225 kg
- - Fire rating: complies with fire safety standards UL 94 V1, NF F 16-101, NF F 16-102 when installed according to manufacturer instructions
- - Temperature range: -13°F to 122°F
- - Fusing: 25 A (Power Circuit), 10 A (Signalling Circuit)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.48
