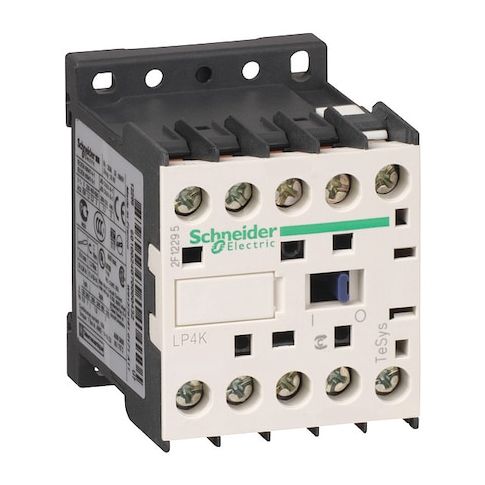

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP4K1201BW3
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Its 3-pole, non-reversing design ensures smooth operation, while the 24V DC coil and screw-clamp terminals provide easy installation and connection. The unit's embedded surge suppressor protects against voltage spikes, and its compact design fits seamlessly onto DIN rail or plate mounting. Suitable for use in a variety of industries, including manufacturing, HVAC, and water treatment, this magnetic contactor offers reliable switching and control for applications requiring high performance and efficiency.
Top product features:
- Mechanically actuated switching device
- Embedded surge suppressor
- Screw-clamp terminals
Top product applications:
- Motor control applications
- Resistive load applications
- Industrial automation applications
Schneider Electric’s IEC Magnetic Contactor (TeSys K) is a 3-pole, non-reversing, mechanically actuated switching device rated for use in motor control and resistive load applications. It features a 24 V DC coil and screw-clamp terminals, and it has no auxiliary contacts. The unit includes an embedded surge suppressor and is rated for operation within the specified voltage ranges of up to 690V AC.
- Coil Voltage: 24V DC
- - Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contacts: No Auxiliary Contacts
- - Reversing: Non-Reversing
- - Terminal Connection: Screw Clamp
- - Frame/Series: TeSys K (TeSys)
- - Maximum Voltage Rating: 690V AC
- - Full Load Amps: Resistive 20 A
- Inductive 12 A
- - Embedded Surge Suppressor: Yes
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail, Plate
- - Dimensions (HxWxD): 2.28 in x 1.77 in x 2.24 in
- - Net Weight: 0.235 kg
- - Frequency: 50/60 Hz
- - Fire Rating: UL 94 V1, NF F 16-101, NF F 16-102
- - Standards: CSA, UKCA, UL Listed
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.49
