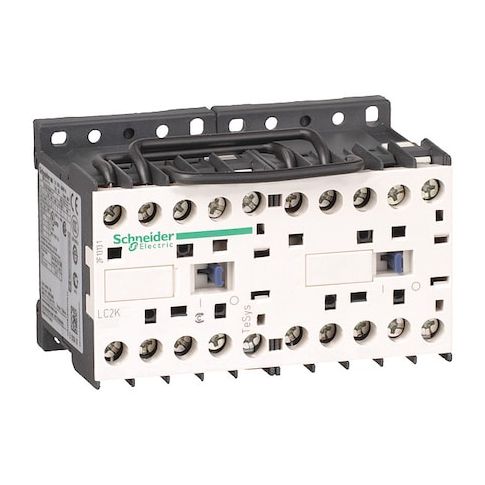

IEC Magnetic Contactor, 1NO, 110V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0610F7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a versatile and reliable solution for motor control and power circuit switching applications. With its reversing action, it enables control of current flow in both directions, making it ideal for use in a variety of industries such as manufacturing, HVAC, and water treatment. Its compact design and screw clamp terminals provide easy installation and maintenance, while its IP20 protection rating ensures safe operation in harsh environments. Suitable for use in a range of applications, including motor control, power circuit switching, and more, this contactor offers a reliable and efficient solution for controlling electrical circuits.
Top product features:
- The IEC Magnetic Contactor has a reversing action, enabling control of current flow in both directions.
- It is equipped with screw clamp terminals for easy electrical connection.
- It has a 3P configuration, suitable for use in motor control and power circuit switching applications.
Top product applications:
- Motor control
- Power circuit switching
- Plate or rail mounting applications
The IEC Magnetic Contactor (TeSys K) with reversing action, rated for operation with a 110 V AC coil within the specified voltage range. It is suitable for use in motor control and power circuit switching applications as specified. The unit is compatible with plate or rail mounting methods as specified. Equipped with screw clamp terminals as specified. Has an IP20 protection rating as defined by relevant standards. Its dimensions are 58 mm in height, 90 mm in width, and 57 mm in depth, and it has a net weight of 0.39 kg.
- Action: Reversing (enables control of current flow in both directions)
- - Coil voltage: 110 V AC (control circuit)
- - Poles: 3P
- - Power contacts: 3 NO
- - Auxiliary contact: 1 NO (Instantaneous)
- - Mounting: Plate, Rail
- - Electrical connection: Screw Clamp Terminals
- - Protection: IP20
- - Rated making capacity: 110 A under standard test conditions, subject to proper installation and usage guidelines.
- - Rated insulation voltage: 600/690 V
- - Series: LC2K
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
- - Weight: 0.39 kg
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.81
