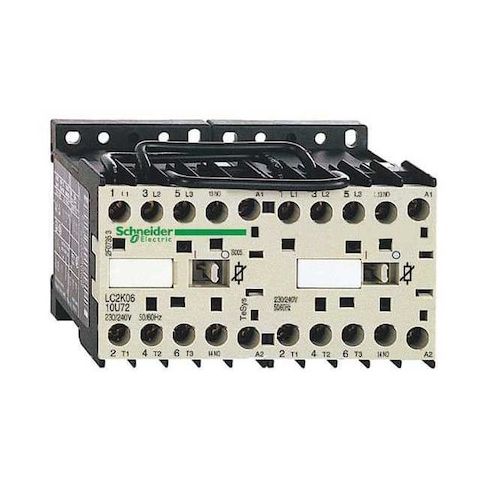

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2K0610B7
Free Shipping
In Stock
The Schneider Electric TeSys K IEC Magnetic Contactor is a reliable and efficient solution for motor control and power-circuit switching applications. This 3-pole reversing contactor is designed for use in a wide range of industries, including manufacturing, construction, and logistics. With its 24V AC coil and screw clamp terminals, it offers easy installation and maintenance. The contactor is also compatible with DIN rail or plate mounting, making it a versatile choice for various applications. By providing a safe and reliable switching solution, the TeSys K contactor helps to reduce downtime and increase productivity in industrial settings.
Top product features:
- Reversing action
- Screw clamp terminals
- Impulse withstand voltage up to 8 kV
Top product applications:
- Motor control
- Power-circuit switching
- AC-3, ≤440 V applications
Schneider Electric’s IEC Magnetic Contactor, TeSys K, is a 3-pole reversing contactor with a 24 V AC coil rated for use in motor control and power-circuit switching applications within specified parameters. It uses screw clamp terminals and is compatible with DIN rail or plate mounting as per installation guidelines. The unit is supplied without an enclosure and has an IP20 rating indicating the level of enclosure protection against solids and liquids, and is rated for operation within the specified voltage range up to 690 V AC.
Key features
- - Coil Voltage: 24 V AC
- - Action: Reversing
- - Poles: 3
- - Terminals: Screw Clamp
- - Mounting: compatible with DIN rail or plate mounting as per installation guidelines
- - Series: TeSys K
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Voltage Rating: Up to 690 V AC
- - Rated Operational Current: 6 A within specified voltage ranges and application categories (AC-3, ≤440 V)
- - Full Load Current – Inductive: suitable for circuits with inductive loads up to 6 A under specified conditions
- - Impedance: 3 mΩ
- - Inrush VA: 30 VA
- Hold-In Power: 4.5 VA
- - Watts Loss: 1.3 W
- - Impulse Withstand Voltage: capable of withstand impulse voltages up to 8 kV when used according to specifications
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
- - Weight: 0.39 kg
- - Dimensions: Height 2.28 in
- Width 3.54 in
- Depth 2.24 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.80
