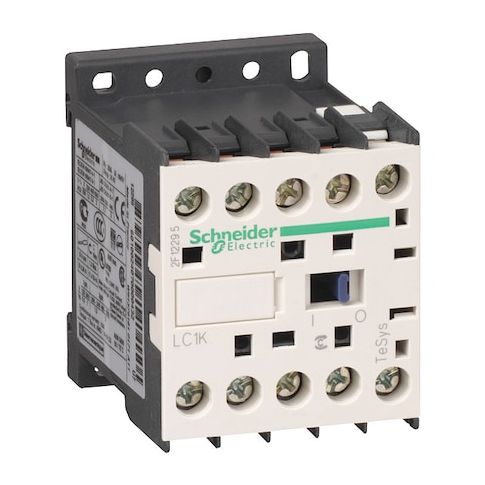

IEC Magnetic Contactor, No Auxiliary Contacts, 220V-230V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1K0910M7
Free Shipping
In Stock
This Schneider Electric TeSys K IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load switching applications in control panels. With a 220-230V AC coil and 3 poles, it provides a non-reversing contactor with screw clamp terminals. Suitable for use in standard IEC applications, it is rated for up to 20A resistive load and has a maximum voltage rating of 690V AC. Its compact design and high durability make it ideal for use in various industries, including manufacturing, HVAC, and food processing, where reliable and efficient motor control is crucial.
Top product features:
- This Schneider Electric device is a 3-pole magnetic contactor with a 220–230 V AC coil, suitable for motor control and resistive load switching applications.
- It has screw clamp terminals for easy connection and disconnection of wires.
- It is designed to operate at a maximum of approximately 3600 cycles per hour, ensuring reliable and efficient switching performance.
Top product applications:
- Motor control
- Resistive load switching
- Control panels
This Schneider Electric device is an IEC Magnetic Contactor (TeSys K) with 3 poles, a 220–230 V AC coil, and no auxiliary contacts. It is a non-reversing contactor with screw clamp terminals and is provided without an enclosure. It is rated for use in motor control and resistive load switching applications and fits standard IEC applications in control panels.
- Coil voltage: 220–230 V AC (50/60 Hz)
- - Poles and main contacts: 3P, 3 NO
- auxiliary contacts: None
- - Reversing: Non-Reversing
- - Series/Frame: TeSys K (TeSys)
- - Enclosure: No Enclosure
- - Terminal type: Screw Clamp
- - Maximum voltage rating: 690 V AC
- - Rated for up to 20 A resistive load
- suitable within specified load conditions
- - Has a rated making capacity of up to 110 A under specified conditions
- - Fuse ratings: 25 A (Power Circuit)
- 10 A (Signalling Circuit)
- - Mechanical durability: 10 Mcycles
- - Electrical durability: Electrical durability tested under specified test conditions
- - Operating speed: Designed to operate at a maximum of approximately 3600 cycles per hour within its specifications
- - Dimensions: Width 1.77 in (45 mm)
- Depth 2.24 in (57 mm)
- Height 2.28 in (58 mm)
- - Operating altitude: 2000 m (6561.68 ft)
- - Overvoltage category: CAT III
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
- - Fire rating: UL 94 V1
- NF F 16-101
- NF F 16-102
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.40
