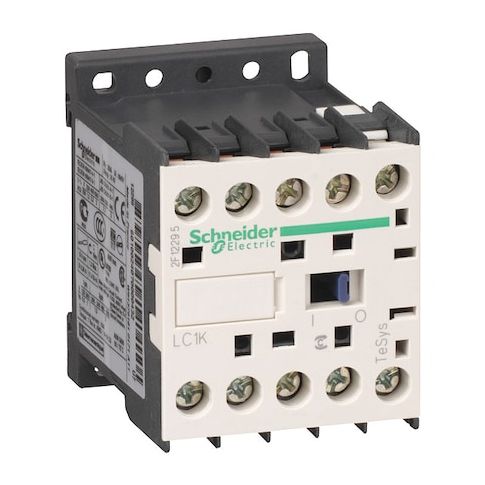

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1K09008G7

• The IEC Magnetic Contactor is a TeSys K, 4-pole, non-reversing AC-operated switch with a 120 V AC coil and screw-clamp terminals. It has no auxiliary contacts and uses 2 normally open plus 2 normally closed main contacts to control circuits designed for use in IEC-based control systems.

  Key features

• - Coil voltage: 120 V AC
• - Poles: 4P
• - Reversing: Non-Reversing
• - Main contacts: 2 NO + 2 NC
• - Auxiliary contacts: No
• - Electrical connection: Screw Clamp Terminals
• - Contactor style: IEC
• Frame/Series: TeSys K
• - Control circuit: AC 50/60 Hz
• Control circuit voltage: 120 V AC
• - Maximum voltage rating: 690 V AC
• - Utilisation category: AC-1
• - Rated making capacity: 110 A (AC Power Circuit)
• - Rated operational current: 20 A (AC-1) within specified voltage range
• - Frequency: 50/60 Hz
• - IP rating: IP22
• IP2X (VDE 0106)
• - Enclosure: No Enclosure
• - Mounting: DIN Rail, Plate
• Mounting support: Rail, Plate
• Mounts on: Plate, Rail
• - Net weight: 0.18 kg
• - Dimensions: Width 1.77 in
• Depth 2.24 in
• Height 2.28 in
• - Maximum switching frequency: 3600 cycles per hour under standard conditions
• - Impedance: 3 mΩ
• - Inrush VA: 30 VA
• Hold VA: 4.5 VA
• - Impulse withstand voltage: 8 kV
• - Protective treatment: TC IEC 60068
• TC DIN 50016
• - Rated insulation voltage: 600/690 V
• - Certifications: CB Scheme
• CCC
• UL
• CSA
• EAC
• CE
• UKCA
• - Fire rating: UL 94 V1
• NF F 16-101
• NF F 16-102
