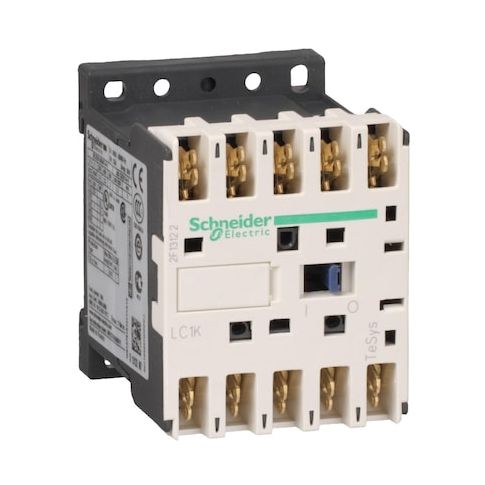

IEC Magnetic Contactor, 2NC/2NO, 220V AC, 4 P, Quick Connect MPN:LC1K090087M7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications, including industrial control systems, machinery, and equipment. Its 4-pole configuration and 2NC/2NO auxiliary contact arrangement enable smooth and precise control of power circuits, while its Quick Connect terminals simplify installation and reduce setup time. Suitable for use in resistive load conditions, this contactor is rated for operation within specified voltage ranges and current ratings, making it a reliable choice for applications where high performance and durability are required.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 2NC/2NO auxiliary contact arrangement.
- It has a rated making capacity of 110 A for AC power circuits.
- It supports a maximum switching rate of 3600 cycles per hour.
Top product applications:
- Industrial Automation
- Motor Control Systems
- Power Distribution Panels
The Schneider Electric IEC Magnetic Contactor is a 4-pole, electrically operated switching device (LC1K series) with a 2NC/2NO auxiliary contact arrangement. It uses a 220 V AC coil and Quick Connect terminals to switch power circuits in accordance with IEC standards, rated for operation within the specified voltage ranges and current ratings as per IEC standards. It supports mounting on plate or rail, is designed to be compatible with resistive load conditions within specified parameters, and has an enclosure rating of IP2X in accordance with IEC standards.
Key features
- - Coil voltage: 220 V AC
- - Auxiliary contacts: 2NC/2NO
- - Poles: 4P
- - Electrical connection: Quick Connect (Faston terminals)
- - Fuse rating: 25 A (gG at ≤440 V for power circuit
- 25 A aM for power circuit)
- - Rated voltage (power circuit): up to 690 V AC
- insulation: 600/690 V
- - Rated making capacity: 110 A (AC Power Circuit)
- - Utilisation category: AC-1
- - Maximum switching rate: 3600 cyc/h
- - Mechanical durability: 10 Mcycles
- - IP rating: IP2X (in accordance with IEC standards)
- - Series: LC1K
- - Dimensions and weight: 45 mm W
- 58 mm H
- 57 mm D
- 0.18 kg
- - Mounting: Plate or Rail
- - Operating time: 5–25 ms depending on action (energisation/de-energisation and NO/NC)
- - Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
- - Hold-in power: 4.5 VA
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.41
